Adaptive Damping Module (G1058058): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Front Row Seat (G1058153) (Removal and Installation).
  2. Refer to: B-Pillar Lower Trim Panel (Removal and Installation).

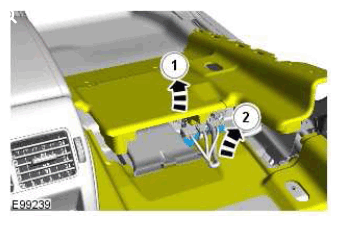

  3. G11420627

    Detach and reposition the floor covering.

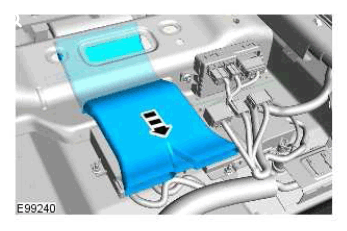

  4. G11420628

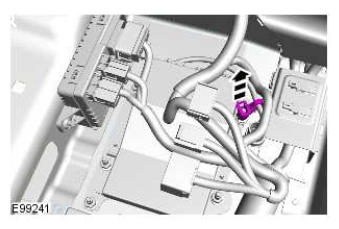

  5. G11420629

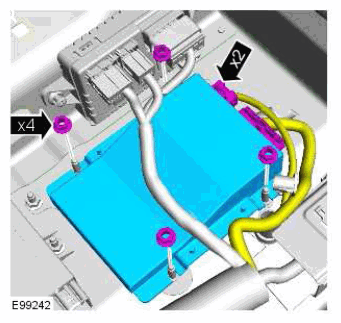

  6. G11420630
