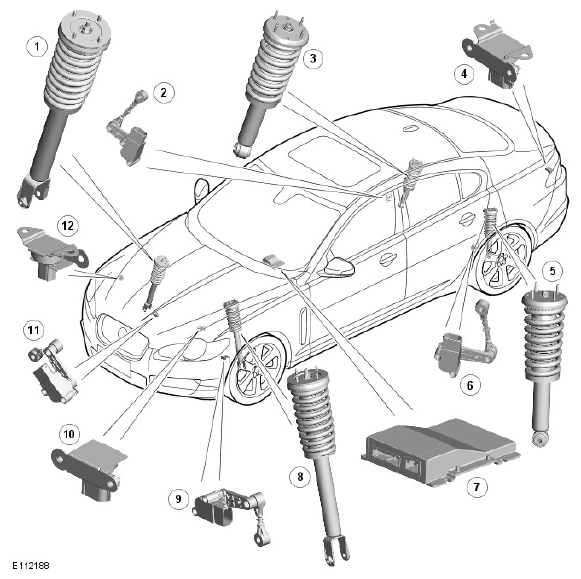

Component Location - Supercharged Vehicles From 2010MY
| ITEM | DESCRIPTION |
|---|---|
| 1 | RH (right-hand) front-spring and damper assembly |
| 2 | RH rear suspension height sensor |
| 3 | RH rear-spring and damper assembly |
| 4 | Rear vertical accelerometer |
| 5 | LH (left-hand) rear-spring and damper assembly |
| 6 | LH rear suspension height sensor |
| 7 | Adaptive damping module |
| 8 | LH front-spring and damper assembly |
| 9 | LH front suspension height sensor |
| 10 | LH front vertical accelerometer |
| 11 | RH front suspension height sensor |
| 12 | RH front vertical accelerometer |
