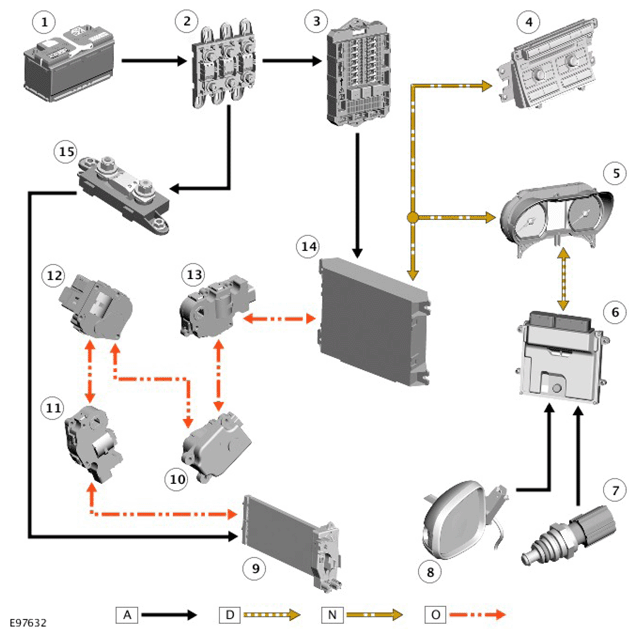

Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired;D
= High speed CAN (controller area network) bus;N
= Medium speed CAN bus;O
= LIN (local interconnect network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | CJB (central junction box) |
| 4 | Integrated control panel |
| 5 | Instrument cluster |
| 6 | ECM (engine control module) |
| 7 | ECT (engine coolant temperature) sensor |
| 8 | Ambient temperature sensor |
| 9 | Electric booster heater |
| 10 | Face/Feet distribution stepper motor |
| 11 | RH (right-hand) temperature blend stepper motor |
| 12 | LH (left-hand) temperature blend stepper motor |
| 13 | Windshield (defrost) distribution stepper motor |
| 14 | ATC (automatic temperature control) module |
| 15 | 150 A megafuse |
