Exhaust System (G1569062): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).

  3. Refer to: Air Deflector (Removal and Installation).

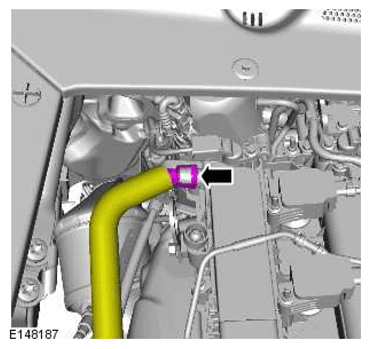

  4. G11424013

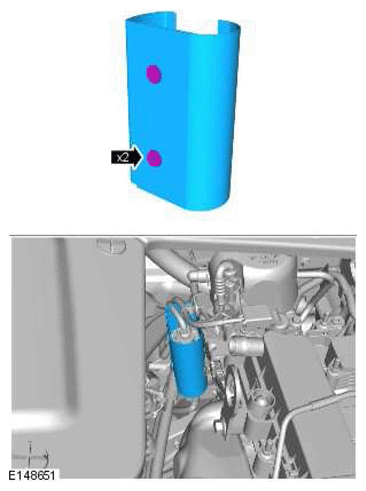

  5. G11424014

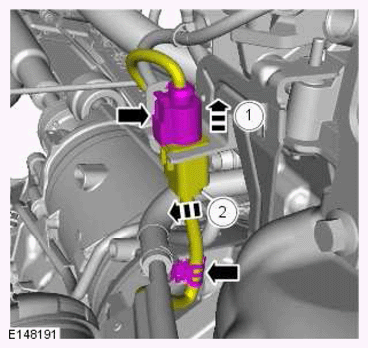

  6. NOTE: The cover is removed for clarity.
    G11424015

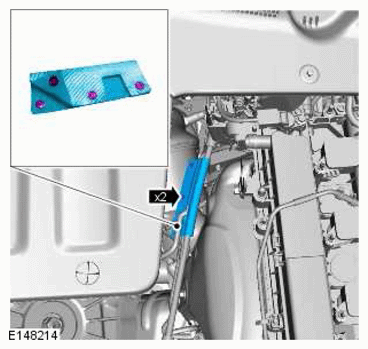

  7. G11424016

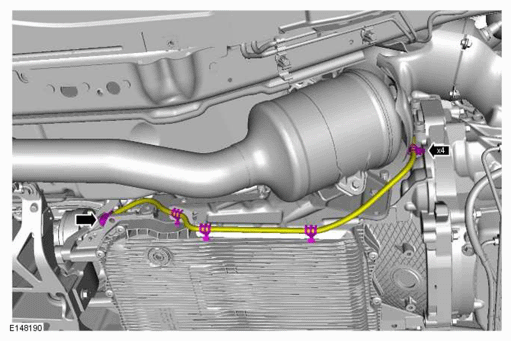

  8. G11424017

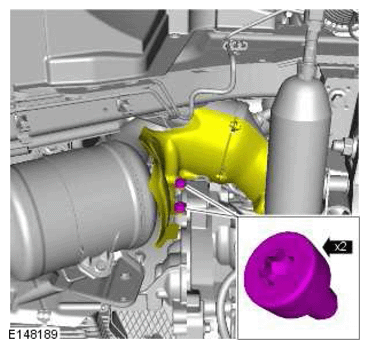

  9. G11424018

    Torque specification  : 35 Nm

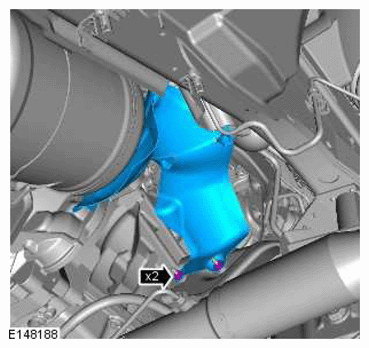

  10. G11424019

    Torque specification  : 9 Nm

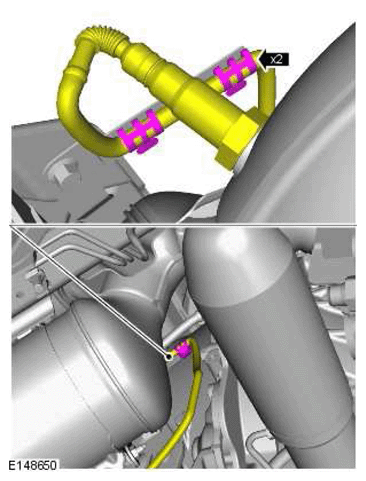

  11. G11424020

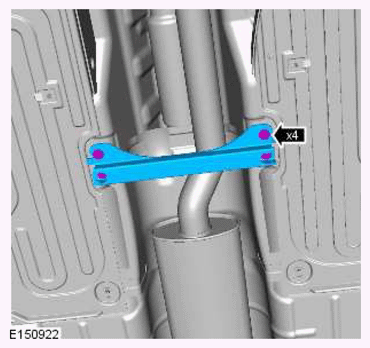

  12. G11424021

    Torque specification  : 6 Nm

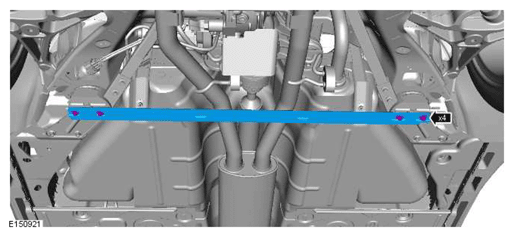

  13. G11424022

    Torque specification  : 30 Nm

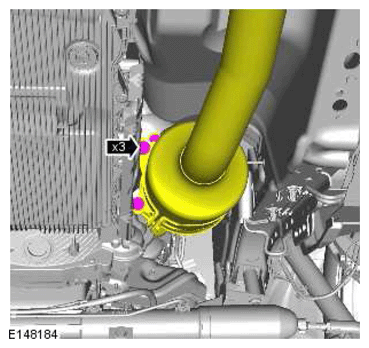

  14. G11424023

    Torque specification  : 25 Nm

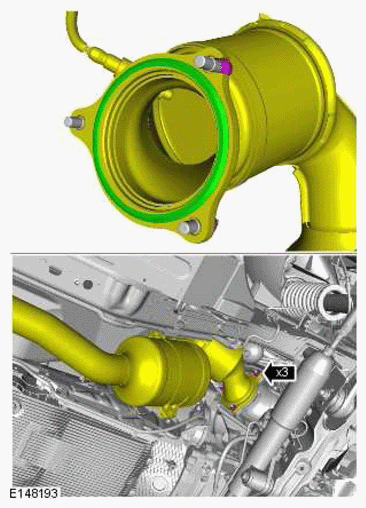

  15. CAUTION: Loosen the upper retaining nut no more than 5 turns each (do not remove the retaining nut). This will aid installation of the catalytic converter.
    NOTE: Remove and discard the gasket.
    G11424024

    Torque specification  : 25 Nm

  16. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE:
    • The step must be carried out on both sides.
    • RH illustration shown, LH is similar.

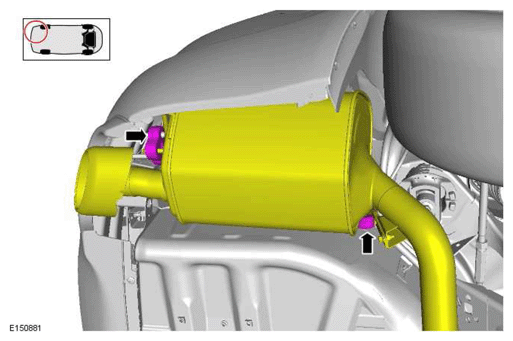

    G11424025

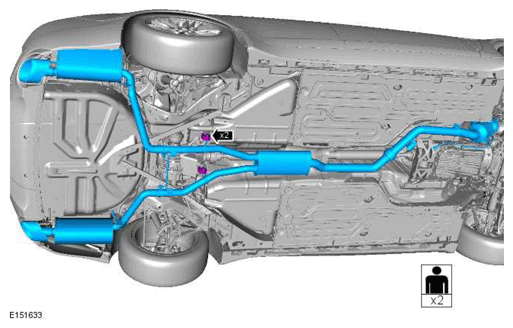

  17. G11424026
  18. NOTE: Do not disassemble further if the component is removed for access only.

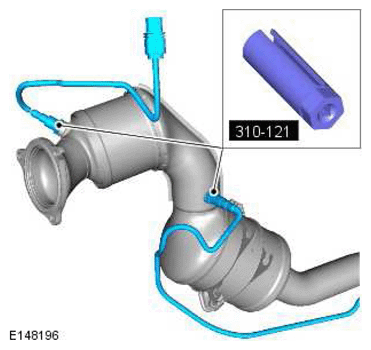

    G11424027

    Special Tool(s): 310-121

    Torque specification: 48 Nm
