High Pressure Fuel Pump 2 - RWD (G1280007): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that tools and equipment are clean, free of foreign material and lubricant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).
  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Engine Oil Draining and Filling (General Procedures).
  6. Refer to: Fuel Injection Component Cleaning (General Procedures).

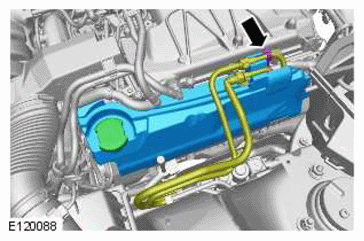

  7. G11419292
  8. CAUTION: Be prepared to collect escaping fluids.

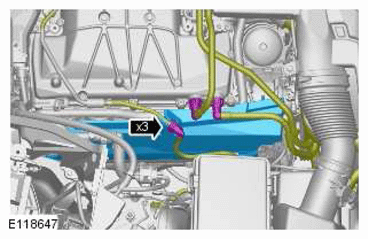

    G11419293
  9. Refer to: Right Air Cleaner (Removal and Installation).
  10. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

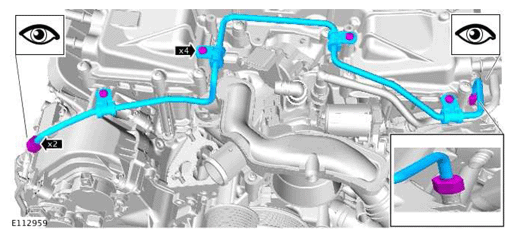

    G11419294

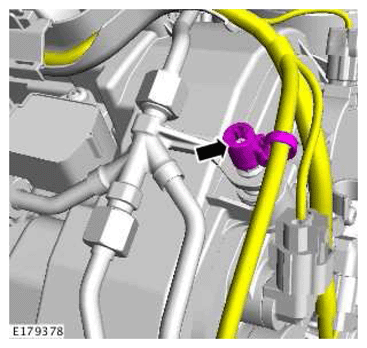

  11. G11419295
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

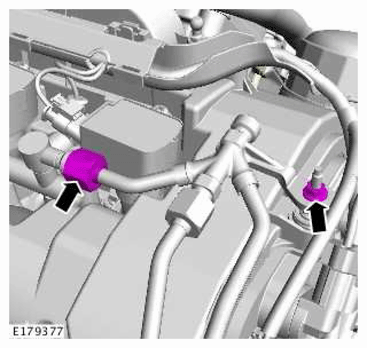

    G11419296
  13. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  14. Refer to: Right Engine Mount - RWD (Removal and Installation).

  15. Refer to: Generator (Removal and Installation).

  16. NOTE: Engine shown removed for clarity.

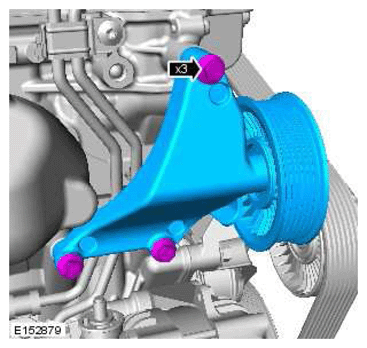

    G11419297
  17. NOTE: Engine shown removed for clarity.
    G11419298
  18. NOTE: Engine shown removed for clarity.

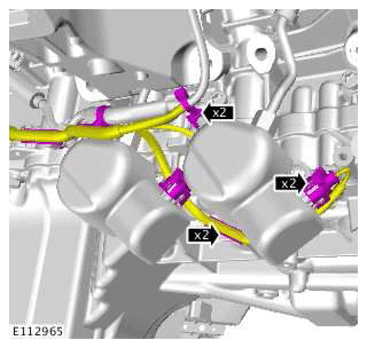

    G11419299
  19. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

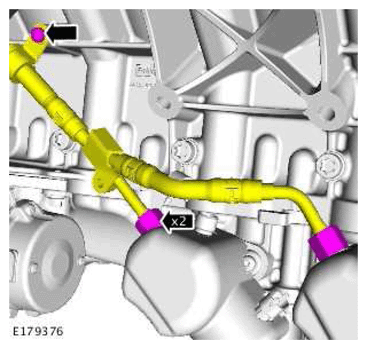

    G11419300
  20. CAUTION:
    • Remove and discard the high-pressure fuel supply lines.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.

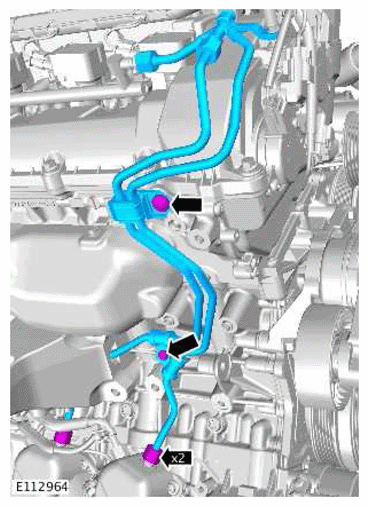

    G11419301

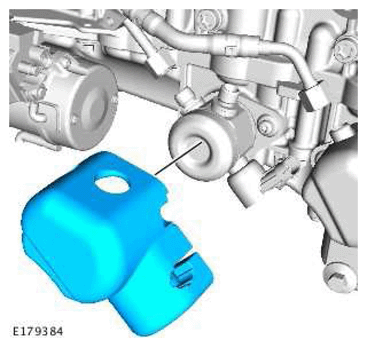

  21. G11419302
  22. CAUTION: Be prepared to collect escaping fluids.

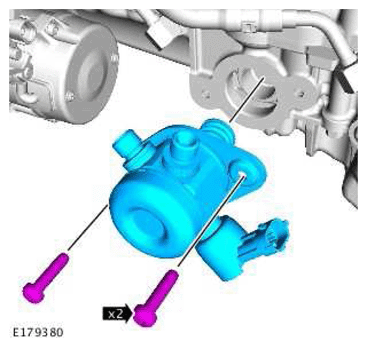

    G11419303

    Loosen the Torx screws a turn each at a time.

  23. CAUTION: Be prepared to collect escaping fluids.

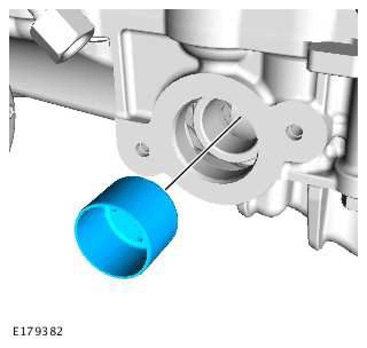

G11419304
