High Pressure Fuel Pump 1 - AWD (G1574232): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 3.8
G11419321
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW 5000 CC, AJ V8, SUPERCHARGED 3.7

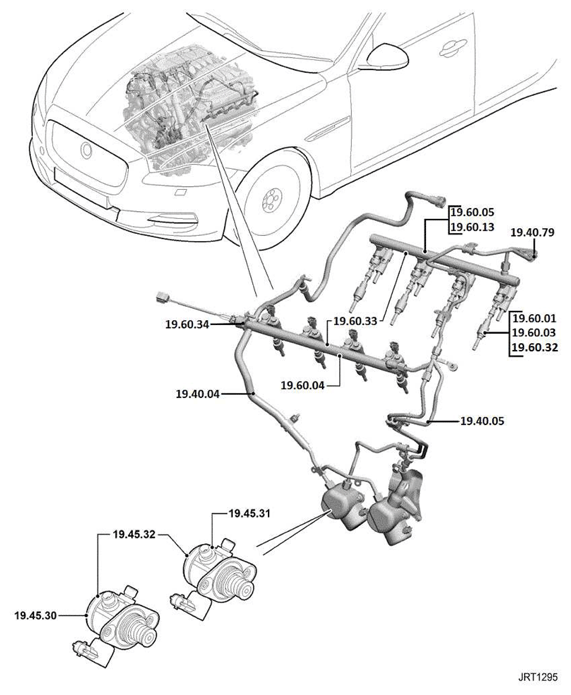

G11419322
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419323
19.45.30 HIGH PRESSURE FUEL PUMP - FRONT - RENEW RIGHT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419324
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 4.1
G11419325
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW 5000 CC, AJ V8, SUPERCHARGED 3.8

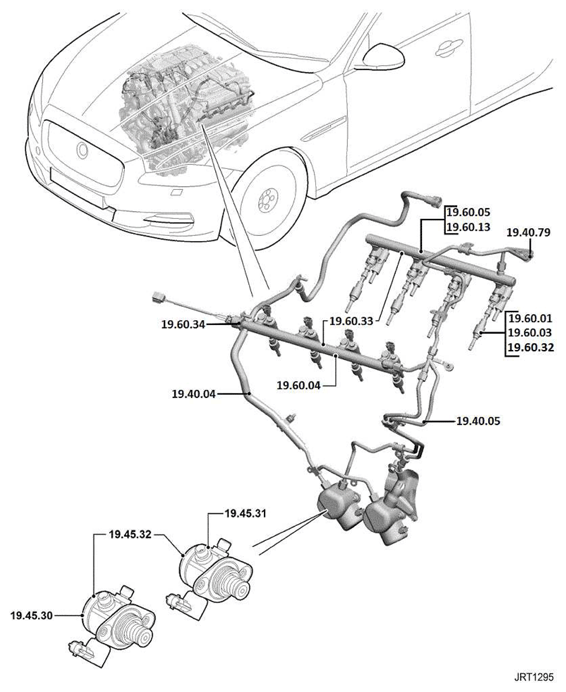

G11419326
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3

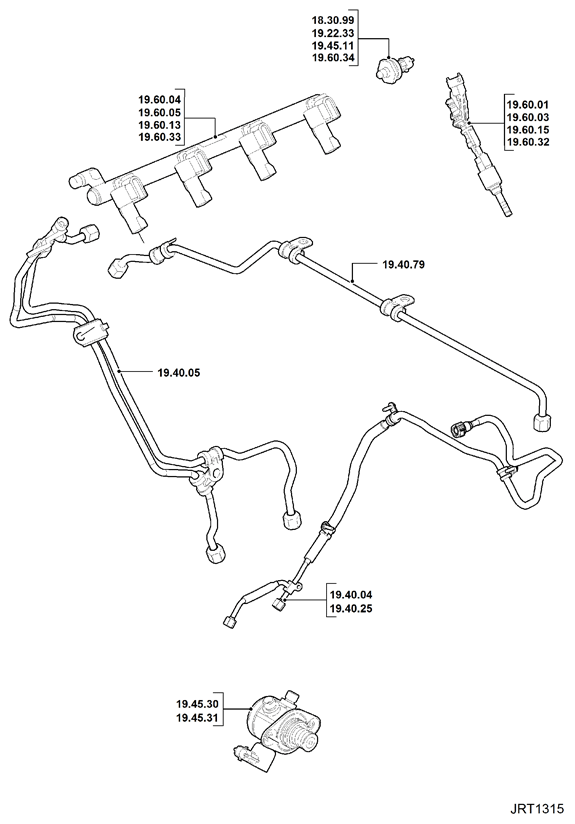

G11419327
19.45.31 HIGH PRESSURE FUEL PUMP - REAR - RENEW RIGHT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 3
G11419328
