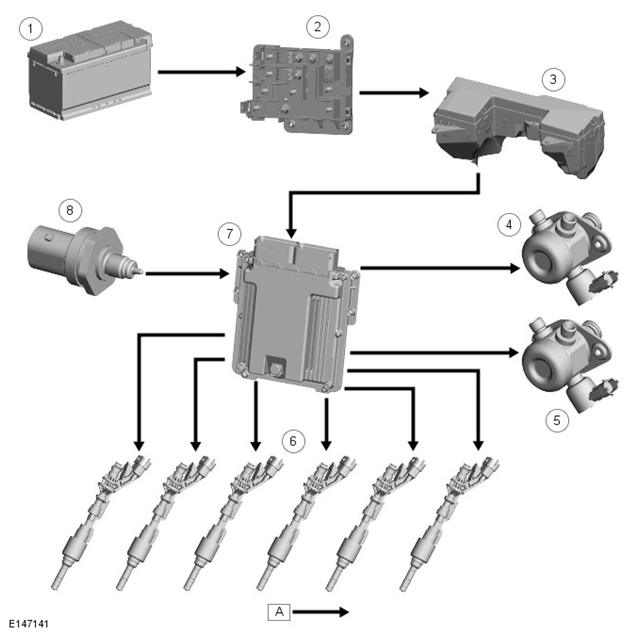

Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired.
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Engine Junction Box (EJB) |
| 4 |
No. 1 High Pressure (HP) fuel pump |
| 5 |
No. 2 High Pressure (HP) fuel pump |
| 6 |
Fuel injectors (6 off) |
| 7 |
Engine Control Module (ECM) |
| 8 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
