Starter Motor (G1550220): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to Intake Manifold (Removal and Installation).

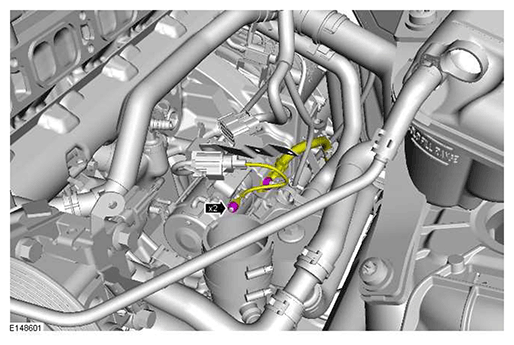

  4. G11416480

    Torque Specifications:

    M8 10 Nm

    M6 6 Nm

  5. NOTE: Vehicles with stop/start (TSS).

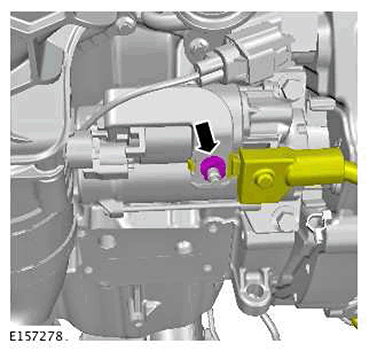

    G11416481

    Torque Specification: 10 Nm

  6. NOTE: Vehicles with stop/start (TSS).

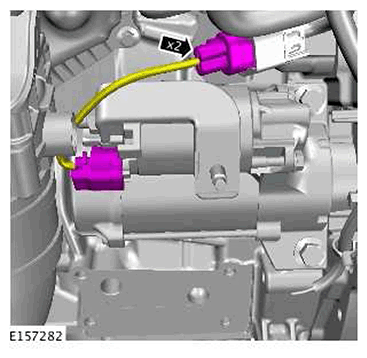

    G11416482

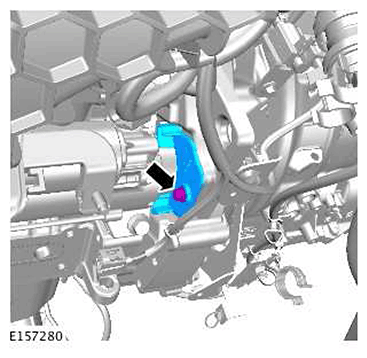

  7. G11416483

    Torque Specification: 9 Nm

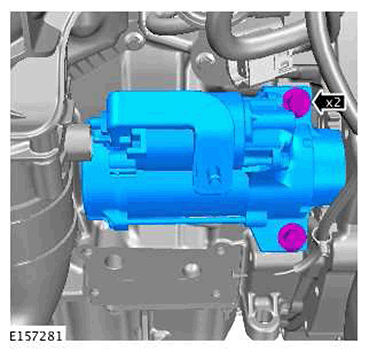

  8. G11416484

    Torque Specification: 40 Nm
