Control Diagram: Notes
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN bus; N
= Medium speed CAN bus

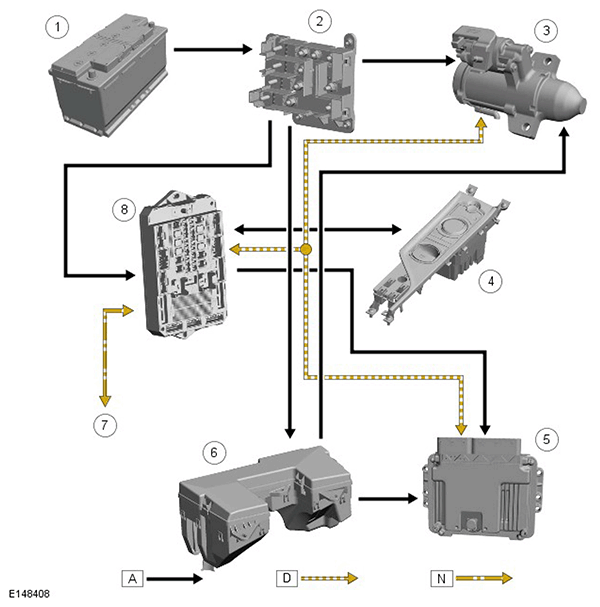

Control Diagram - Vehicles Without Stop/Start System
| ITEM | DESCRIPTION |
|---|---|
| 1 | Primary battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Starter motor |
| 4 | Transmission Control Switch (TCS) |
| 5 | Engine Control Module (ECM) |
| 6 | Engine Junction Box (EJB) |
| 7 | CAN connection to others systems |
| 8 | Central Junction Box (CJB) |
