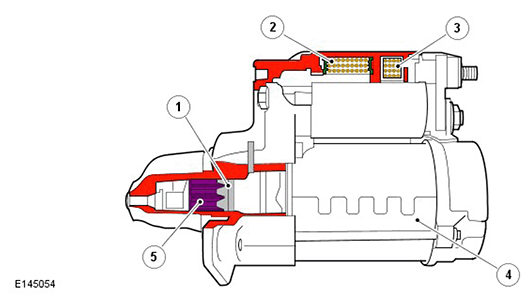

TSS Motor Sectional View

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
G11421983
ITEM DESCRIPTION
1 Advanced engagement mechanism
2 Pinion gear shift solenoid
3 Motor rotation solenoid
4 Motor/casing
5 Pinion gear
