Left Camshaft Position Sensor (G1086656): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Thermostat Housing (Engine Cooling - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

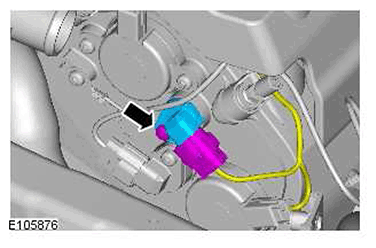

  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11416896

    Torque Specification: 10 Nm
