Front Left Knock Sensor (G1085875): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Supercharger (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

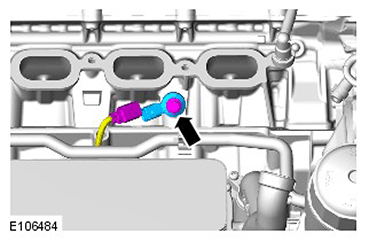

  4. G11416941

    Torque Specification: 20 Nm
