Side Vent Clutch (G1920977): Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not manually open the registers. Failure to follow this instruction may result in damage to the internal components.
NOTE:
If the registers are set to 'Automatic' mode and one or more are disconnected during an ignition cycle, a vehicle battery reset may be required to reconnect the affected registers to the LIN BUS.
- If replacing the drivers side register clutch follow this step. Refer to: Driver Side Register (Removal and Installation).
- If replacing the passenger side register clutch follow this step. Refer to: Passenger Side Register (Removal and Installation).
-

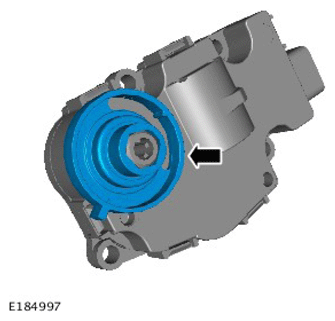

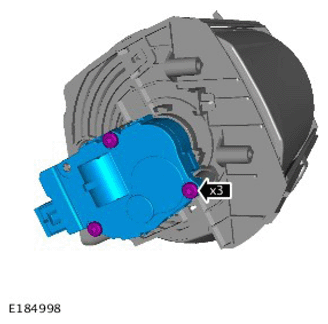

CAUTION: Do not manually open the registers. Failure to follow this instruction may result in damage to the internal components.
