SUNLOAD Sensor (G1069277): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. CAUTION:
    • Protect the surrounding trim to avoid damage.
    • Make sure that the clips are correctly located.

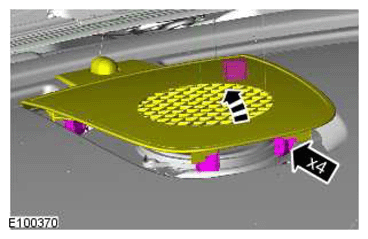

    G11424474

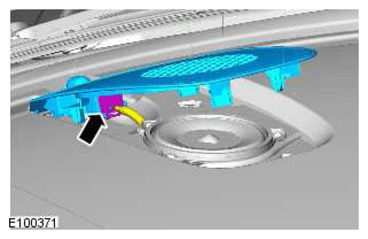

  3. G11424475
  4. CAUTION: Make sure that the component is correctly located on the locating dowels.

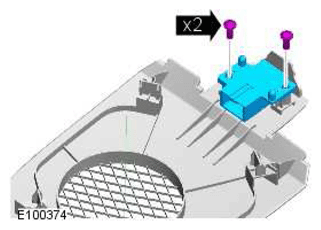

    G11424476

    Torque Specification: 2 Nm
