RECIRCULATION Blend Door Actuator (G1005933): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Glove Compartment (Removal and Installation).

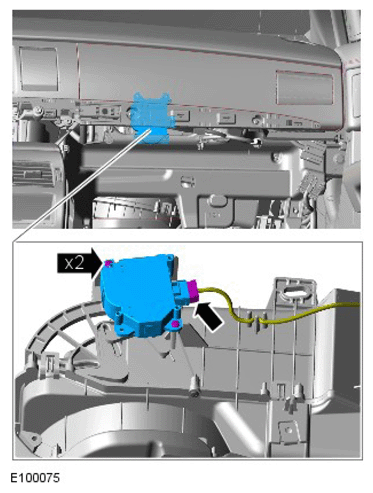

NOTE: Make sure that the actuator is correctly aligned to the recirculation blend door arm.
