Instrument Panel Register Trim Panel (G1065946): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

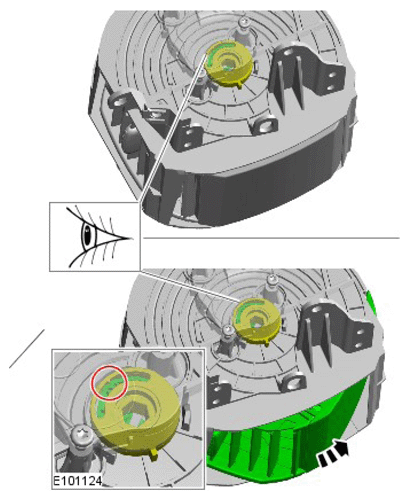

CAUTION: Make sure that the clutch rib is located between the two ribs on the car rearward (front half), of the register housing to avoid damage on installation.

To install, reverse the removal procedure.

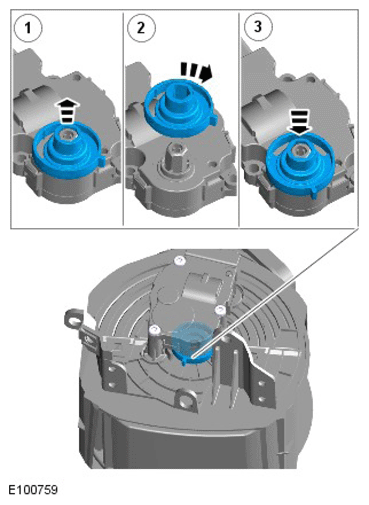

Position the locating peg.
