Floor Console Register (G1001146): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove both floor console side trim panels.

    Refer to: Floor Console Side Trim Panel (Removal and Installation).

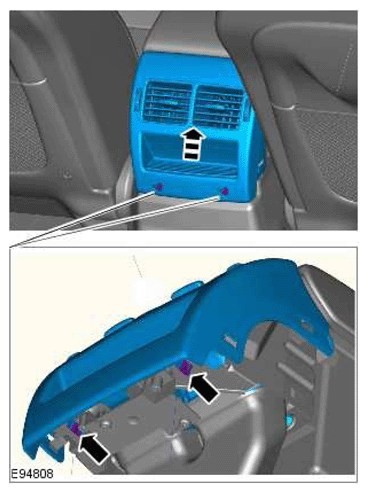

  2. G11424433
  3. NOTE: Do not disassemble further if the component is removed for access only.

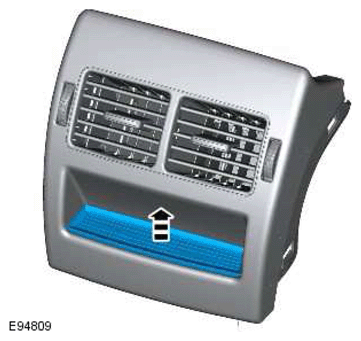

    G11424434

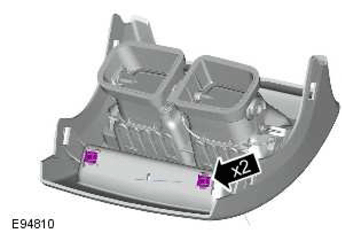

  4. G11424435

    Remove the 2 clips.
