Evaporator (G1450324): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).

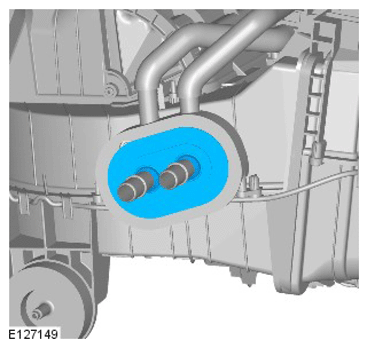

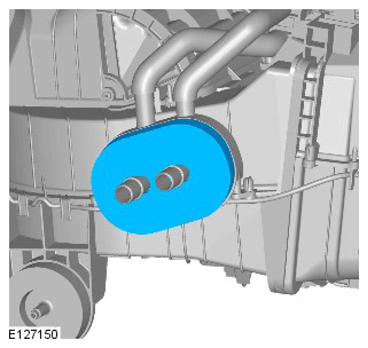

Refer to: Thermostatic Expansion Valve (Removal and Installation).

Right-hand drive vehicles

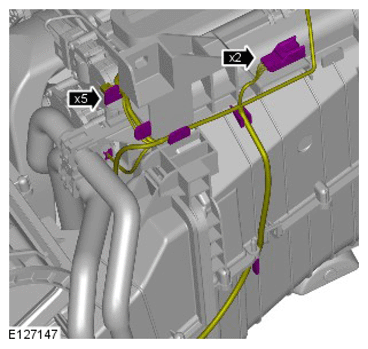

Torque Specification: 1.5 Nm
Torque Specification: 1.5 Nm

Left-hand drive vehicles

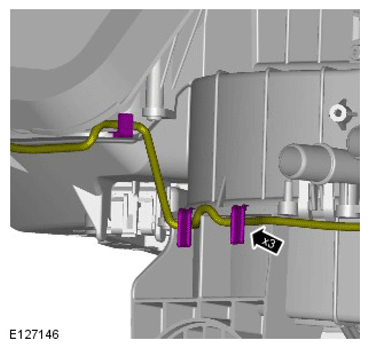

Torque Specification: 1.5 Nm

All vehicles

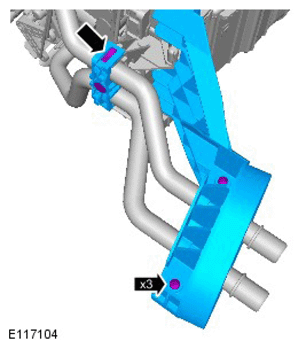

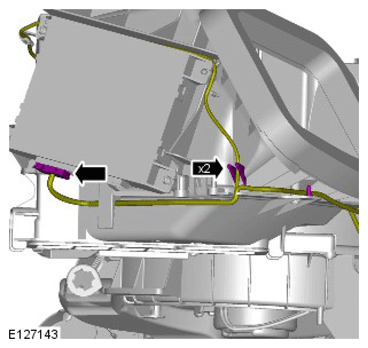

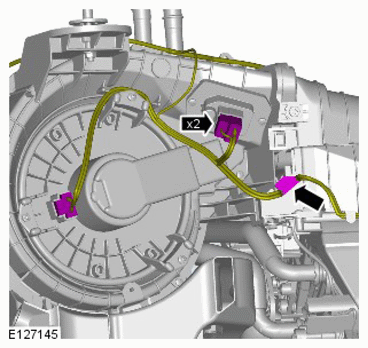

NOTE: LHD illustration shown, RHD is similar.

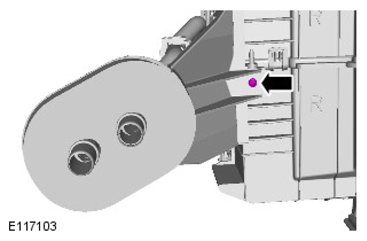

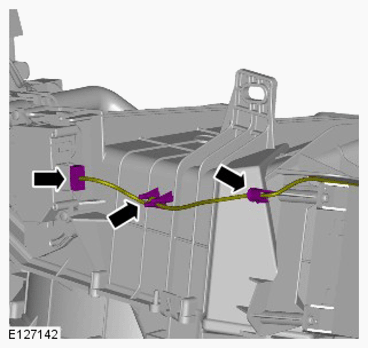

NOTE: LHD illustration shown, RHD is similar.

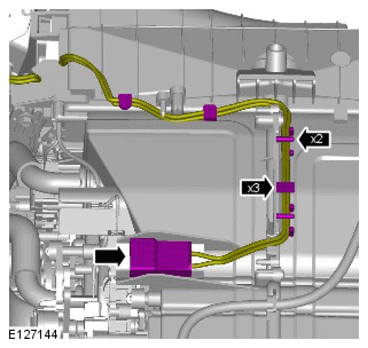

NOTE: LHD illustration shown, RHD is similar.

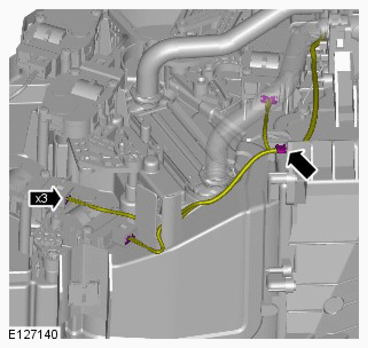

NOTE: LHD illustration shown, RHD is similar.
NOTE: LHD illustration shown, RHD is similar.
NOTE: LHD illustration shown, RHD is similar.

Vehicles with diesel engine

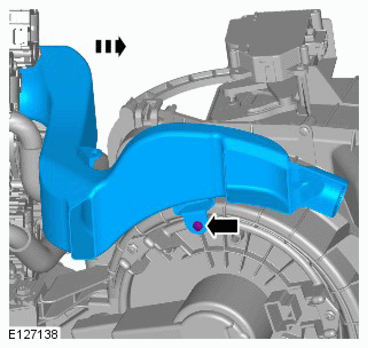

NOTE: RHD illustration shown, LHD is similar.

Right-hand drive vehicles

All vehicles

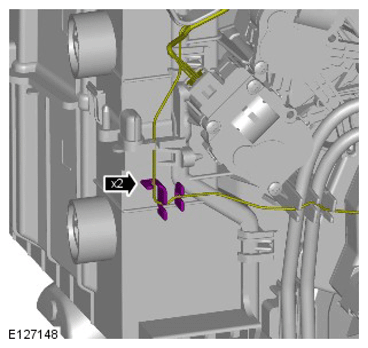

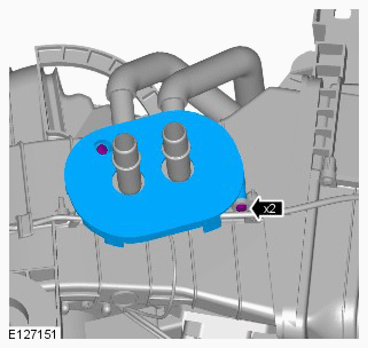

NOTE: LHD illustration shown, RHD is similar.

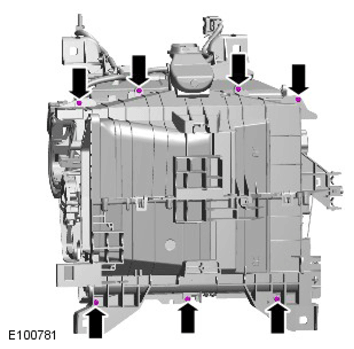

Torque Specification: 1.5 Nm

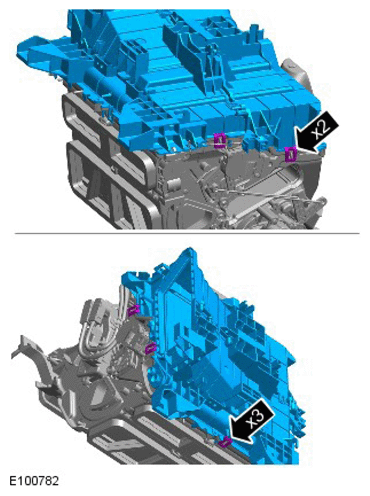

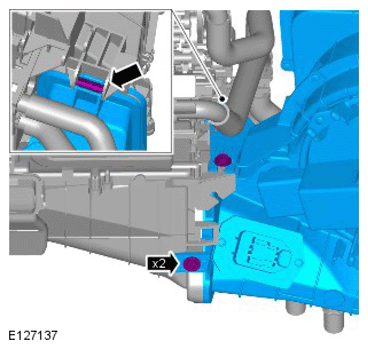

NOTE: LHD illustration shown, RHD is similar.

Torque Specification: 9 Nm

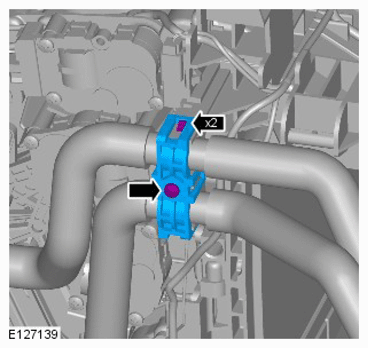

Left-hand drive vehicles

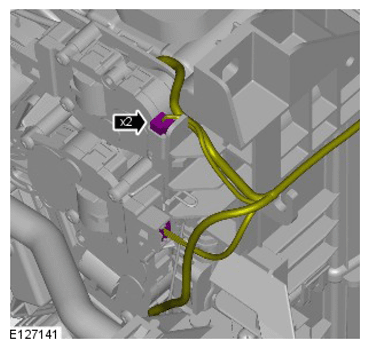

Torque Specification: 1.5 Nm

All vehicles

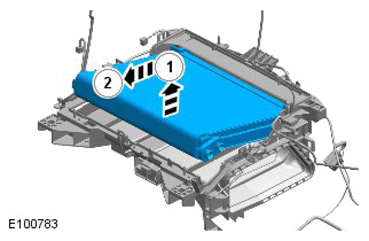

Torque Specification: 1.5 Nm
WARNING: Only use moderate force when installing the sensor.
CAUTION:
- Make sure the evaporator temperature sensor harness does not become trapped.
- Make sure that the sensor is correctly installed.
