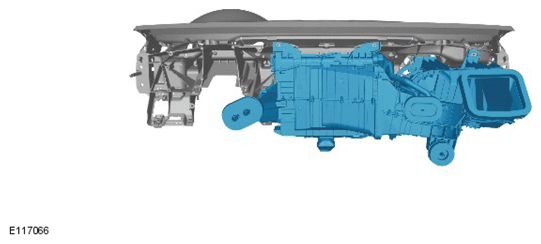

Climate Control Assembly (G1448151): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
RHD illustration shown, LHD is similar.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands

Raise and support the vehicle.
Refer to: Instrument Panel Console (Removal and Installation).

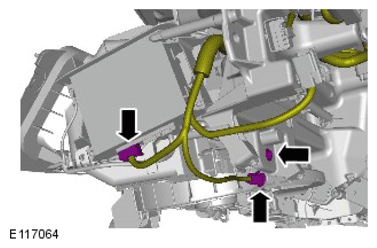

Torque Specification: 9 Nm

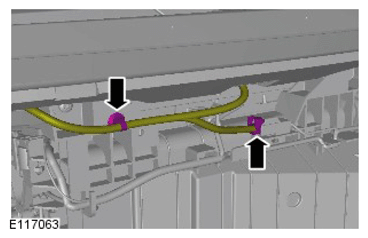

CAUTION: Be prepared to collect escaping coolant.

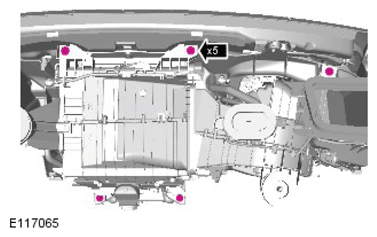

Torque Specification: 9 Nm
