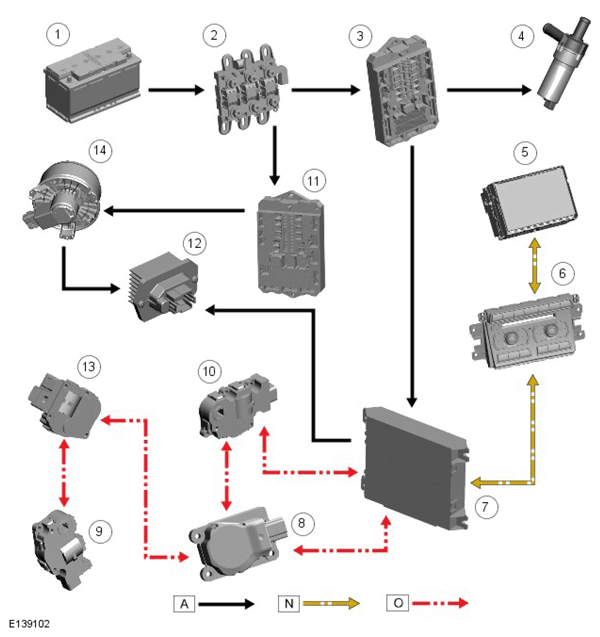

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium speed CAN (controller area network) bus; O
= LIN (local interconnect network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | CJB (central junction box) |
| 4 | Auxiliary coolant pump |
| 5 | Touch screen display (TSD) |
| 6 | Integrated Control Panel (ICP) |
| 7 | ATC (automatic temperature control) module |
| 8 | Face/Feet distribution stepper motor |
| 9 | RH (right-hand) temperature blend stepper motor |
| 10 | Windshield (defrost) distribution stepper motor |
| 11 | RJB (rear junction box) |
| 12 | Blower control module |
| 13 | LH (left-hand) temperature blend stepper motor |
| 14 | Blower |
