Component Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

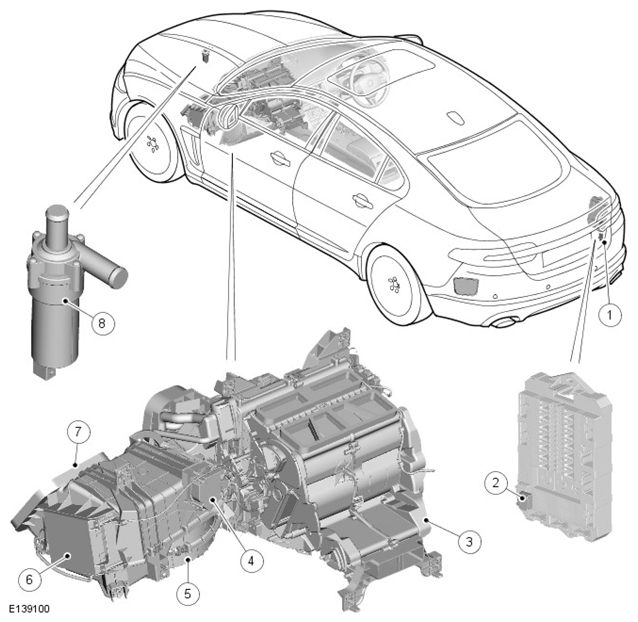

G11424359
ITEM DESCRIPTION
1 Ventilation outlet
2 Blower relay (on RJB (rear junction box))
3 Heater assembly
4 Blower control module
5 Blower
6 ATC (automatic temperature control) module
7 Air inlet duct
8 Auxiliary coolant pump
