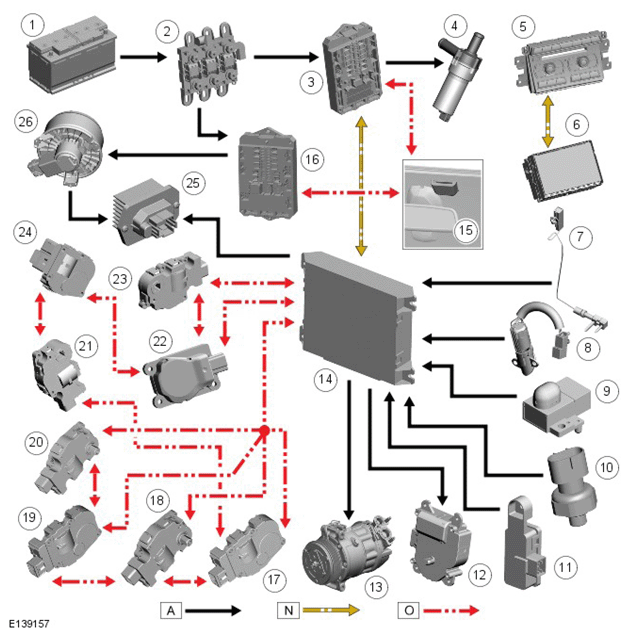

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium speed CAN (controller area network) bus; O
= LIN (local interconnect network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | CJB (central junction box) |
| 4 | Auxiliary coolant pump (where fitted) |
| 5 | Integrated Control Panel (ICP) |
| 6 | TSD (touch screen display) |
| 7 | Evaporator temperature sensor |
| 8 | Humidity and temperature sensor |
| 9 | Sunload sensor |
| 10 | Refrigerant pressure sensor |
| 11 | Pollution sensor (where fitted) |
| 12 | Air inlet servo motor |
| 13 | A/C (air conditioning) compressor solenoid valve |
| 14 | ATC (automatic temperature control) module |
| 15 | Mist sensor (windshield) |
| 16 | RJB (rear junction box) |
| 17 | RH (right-hand) outer face level register |
| 18 | RH inner face level register |
| 19 | LH (left-hand) inner face level register |
| 20 | LH outer face level register |
| 21 | RH temperature blend stepper motor |
| 22 | Face/Feet distribution stepper motor |
| 23 | LH temperature blend stepper motor |
| 24 | Windshield (Defrost) stepper motor |
| 25 | Blower control module |
| 26 | Blower |
