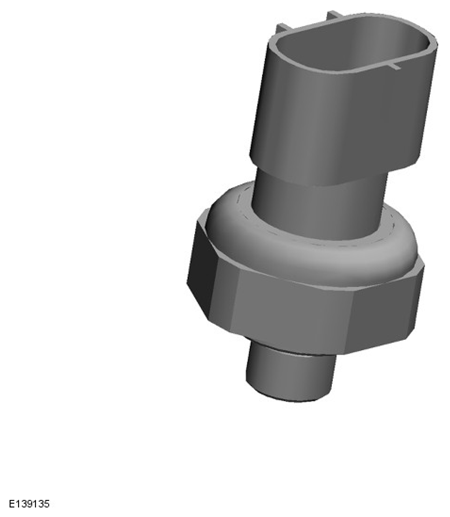

Refrigerant Pressure Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
G11424367

The refrigerant pressure sensor is located in the high pressure/temperature refrigerant line between the condenser and the thermostatic expansion valve.

Refer to: Control Components  (Description and Operation).
