A/C Compressor - V6 Petrol

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

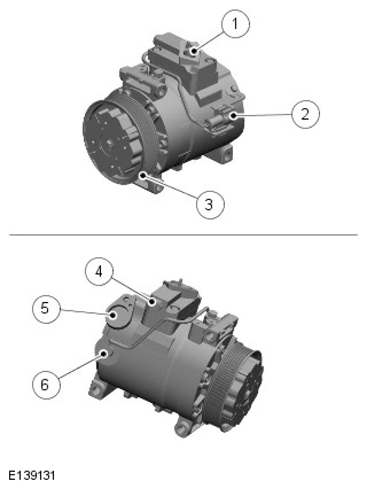

G11424364
ITEM DESCRIPTION
1 Outlet port
2 Electrical connector
3 Pulley
4 Pressure relief valve
5 Inlet port
6 Solenoid valve
