Component Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

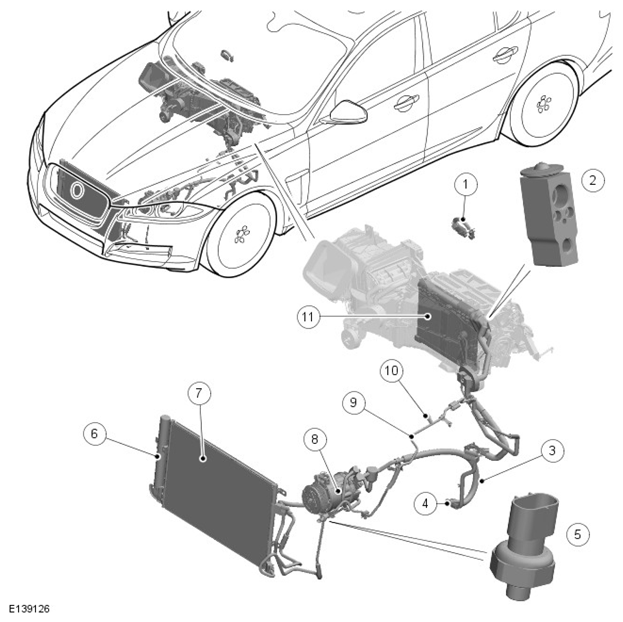

| ITEM | DESCRIPTION |
|---|---|
| 1 | Humidity and temperature sensor |
| 2 | Thermostatic expansion valve |
| 3 | Low pressure line |
| 4 | Low pressure servicing connection |
| 5 | Refrigerant pressure sensor |
| 6 | Receiver/Drier |
| 7 | Condenser |
| 8 | A/C (air conditioning) compressor |
| 9 | High pressure line |
| 10 | High pressure servicing connection |
| 11 | Evaporator |
