Transmission (G1578930): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, GTDI 4.4
G11417630
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2200 CC, TD4 4.6
G11417631
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 5.3
G11417632
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 6.2
G11417633
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, TDV6 5.8
G11417634
44.20.01 TRANSMISSION ASSEMBLY - RENEW 5000 CC, AJ V8 3.9
G11417635
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, GTDI 3.7
G11417636

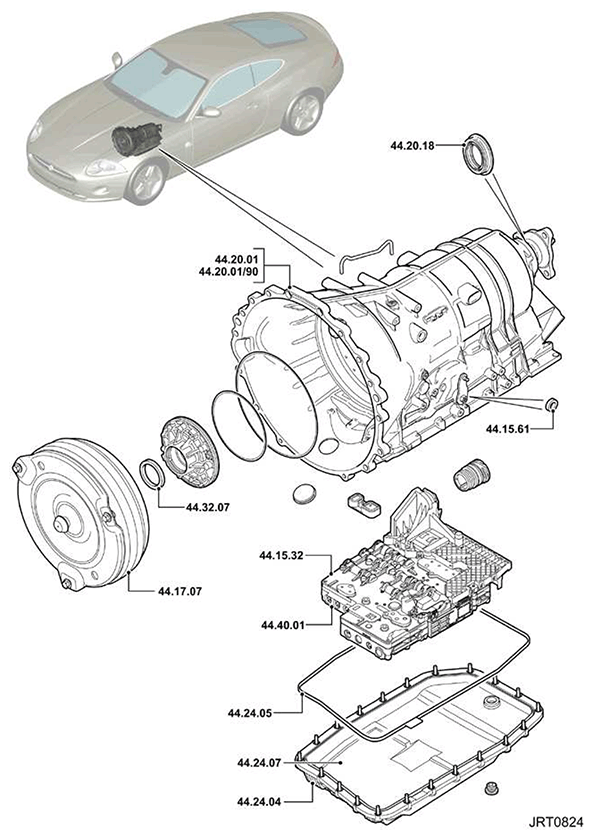

44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2200 CC, TD4 4
G11417637
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 4.4
G11417638
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 5.1
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, TDV6 5.5
G11417639
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 5000 CC, AJ V8 3.4
G11417640

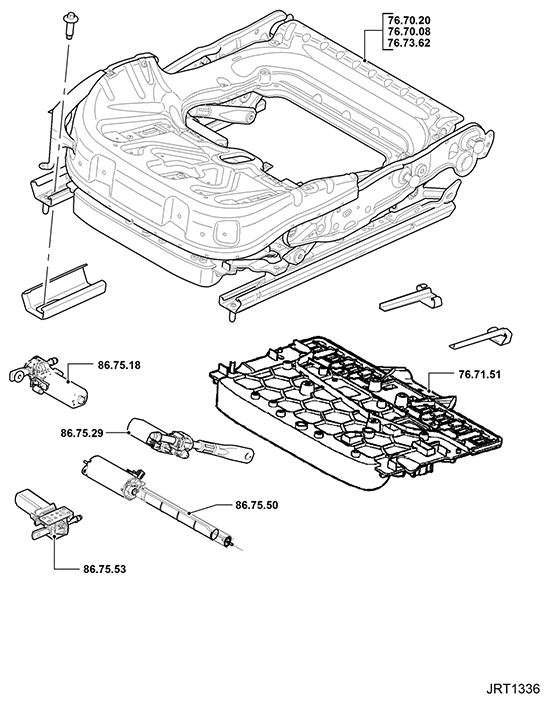

86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 0.4
G11417641
