Component Location - Rear Wheel Drive (RWD)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Sportbrake shown, Saloon similar

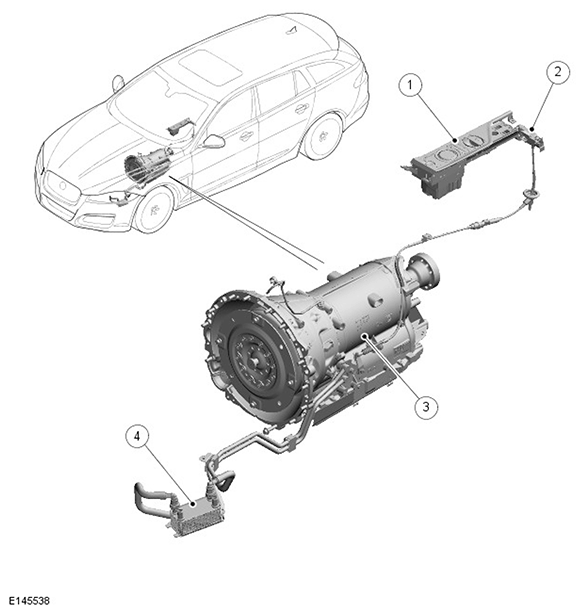

G11417526
ITEM DESCRIPTION
1 Transmission Control Switch (TCS)
2 Emergency park release lever and cable
3 Automatic transmission
4 Transmission fluid cooler
