Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Accessory Drive Belt (V6 S/C 3.0L Petrol, Removal and Installation).
  4. Refer to: Accessory Drive Belt Tensioner (- V6 S/C 3.0L Petrol, Removal and Installation).
  5. Refer to: ELECTRIC THERMOSTAT (G1772758) (V6 S/C 3.0L Petrol, Removal and Installation).
  6. Refer to: Left Valve Cover  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
  7. Refer to: Right Valve Cover  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
  8. Refer to: Crankshaft Pulley  (V6 S/C 3.0L Petrol, Removal and Installation).

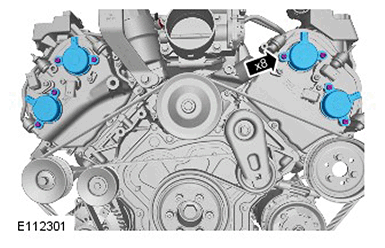

  9. G11416042

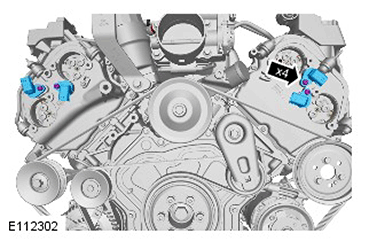

  10. G11416043

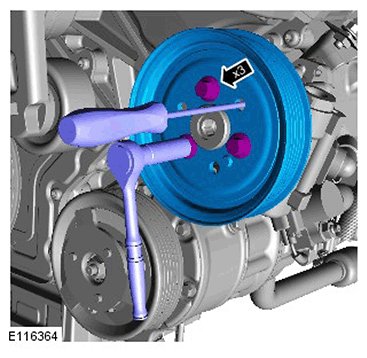

  11. G11416044

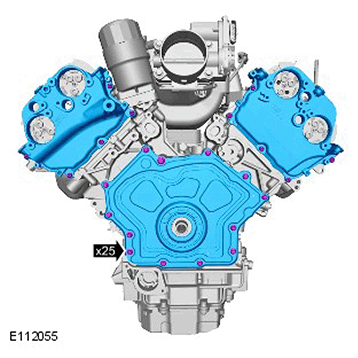

G11416045
