Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

All vehicles

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Exhaust System - RWD (V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Exhaust System - AWD (V6 S/C 3.0L Petrol, Removal and Installation).

Right-h and drive vehicles
Refer to: Steering Gear - RWD (Power Steering, Removal and Installation).
Refer to: Steering Gear - AWD (Power Steering, Removal and Installation).

All vehicles

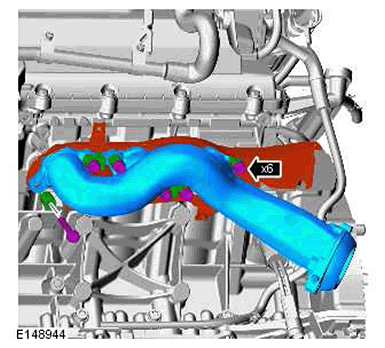

CAUTION:
- Discard the bolts.
- LH illustration shown, RH is similar.
NOTE:
- Discard the gasket.
- Make sure that the position of the spacers is noted before removal of the manifold.
NOTE: Do not disassemble further if the component is removed for access only.
