Removal And Installation: Installation

All vehicles

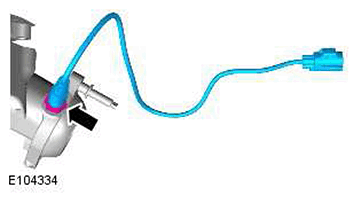

1. CAUTION:

   • Make sure that the mating faces are clean and free of foreign material.
   • Make sure the anti-seize compound does not contact the catalyst monitor sensor tip.
   • If accidentally dropped or knocked install a new sensor.
   • Make sure the catalyst monitor sensor wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.
   NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

   Torque Specification: 45 Nm

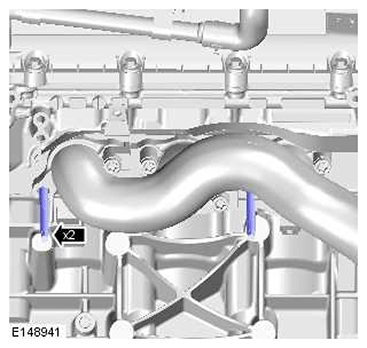

2. CAUTION: LH illustration shown, RH is similar.
   NOTE: Install a new gasket.

   Install the special tool.

   Special Tool(s):  303-1444-01

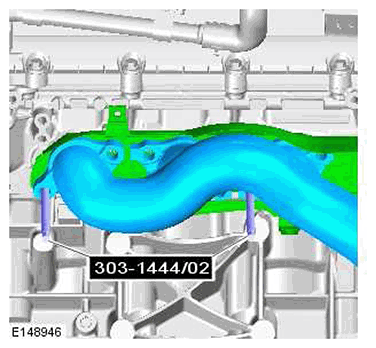

3. CAUTION: LH illustration shown, RH is similar.
   NOTE: If a new cylinder head is installed use the special tools in the illustration.

   Special Tool(s):  303-1444-02

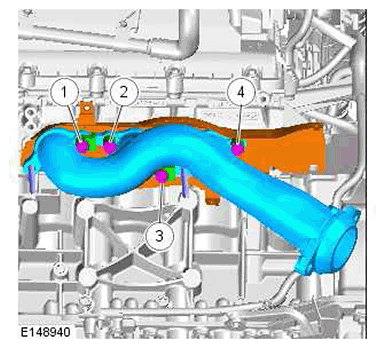

4. CAUTION:

   • Make sure that new bolts are installed.
   • LH illustration shown, RH is similar.
   NOTE: Install the spacers in the noted position.

   Torque Specification: 10 Nm

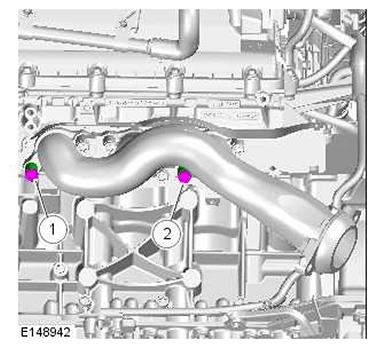

5. CAUTION: LH illustration shown, RH is similar.

   Remove the special tool.

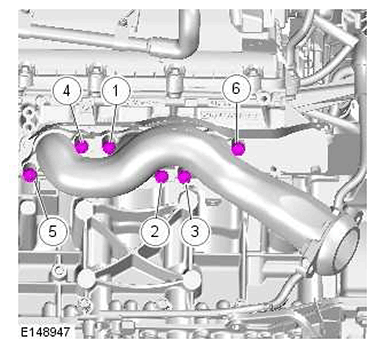

6. CAUTION:

   • Make sure that new bolts are installed.
   • LH illustration shown, RH is similar.
   NOTE: Install the spacers in the noted position.

   Torque Specification: 10 Nm

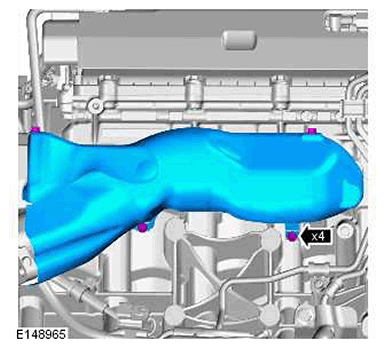

7. CAUTION: LH illustration shown, RH is similar.

   Torque Specification: 18 Nm

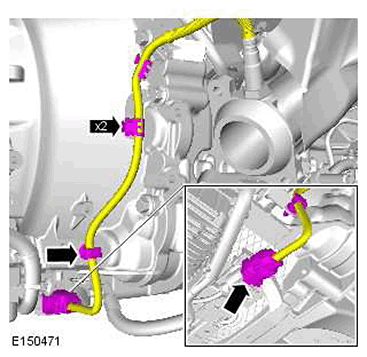

8. Torque Specification:

   Bolts 6.3 x 13 3 Nm

   Bolt M8 25 Nm

9. Right-h and drive vehicles

10. Refer to: Steering Gear - RWD (Power Steering, Removal and Installation).

    Refer to: Steering Gear - AWD (Power Steering, Removal and Installation).

    All vehicles

11. Refer to: Exhaust System - RWD (V6 S/C 3.0L Petrol, Removal and Installation).

    Refer to: Exhaust System - AWD (V6 S/C 3.0L Petrol, Removal and Installation).

12. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
