Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

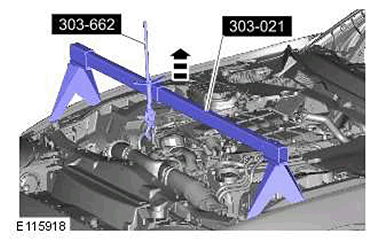

  3. G11415693

    Special Tool(s):  303-021, 303-662

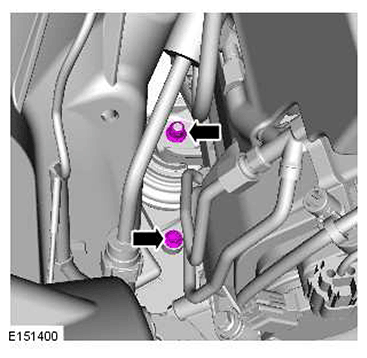

  4. G11415694
    • Torque Specification: 48 Nm

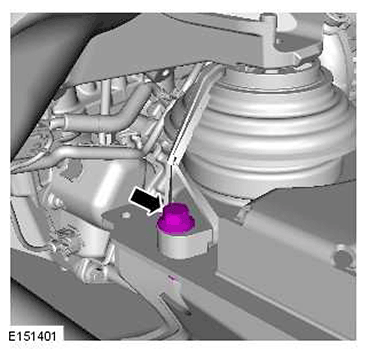

  5. G11415695

    Torque Specification: 48 Nm

  6. CAUTION: Care must be taken to avoid damaging the surrounding components.

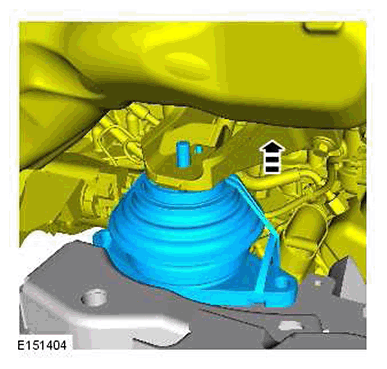

    G11415696
    • Raise the engine clear of its RH mount.
  7. NOTE: Do not disassemble further if the component is removed for access only.

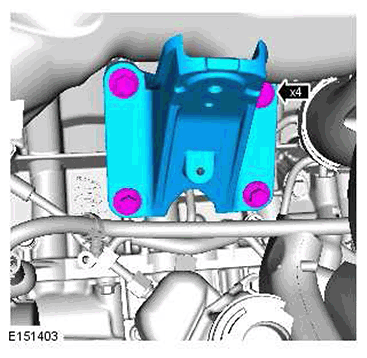

    G11415697

    Torque Specification: 40 Nm
