Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

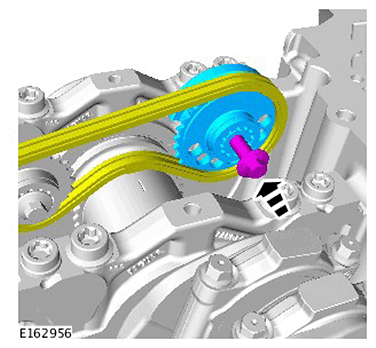

  1. G11416201

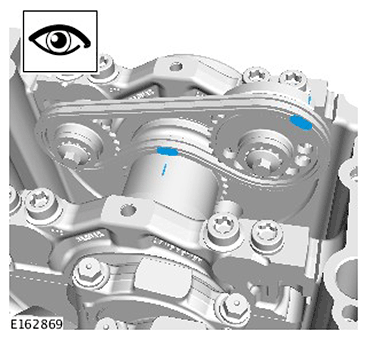

  2. CAUTION: Make sure the timing marks are aligned.
    G11416202

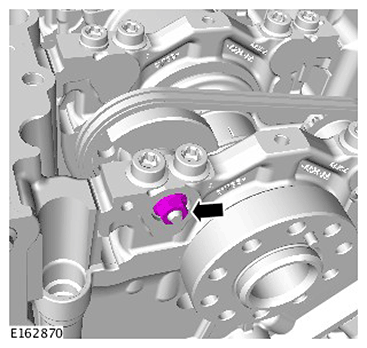

  3. G11416203

    Torque Specification:

    Stage 1: 25 Nm

    Stage 2: 38°

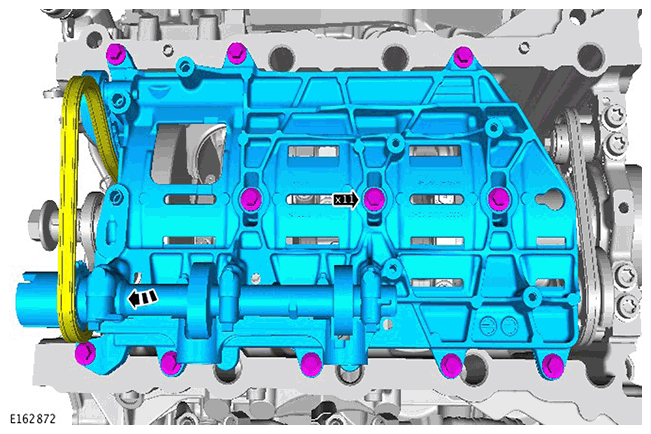

  4. CAUTION: Install all the bolts finger tight before final tightening.
    G11416204

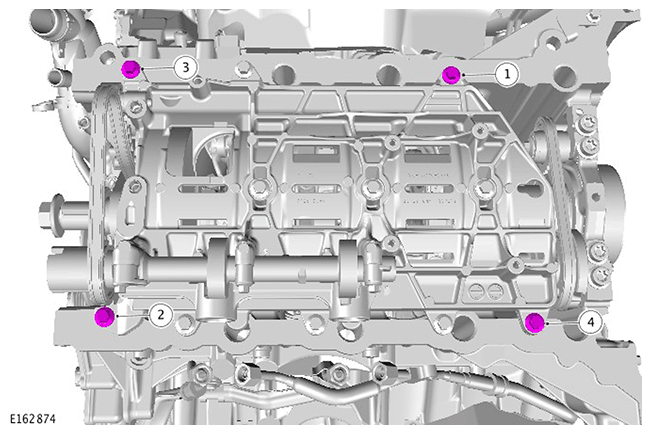

  5. G11416205

    Tighten bolts in the sequence shown.

    Torque Specification: 25 Nm

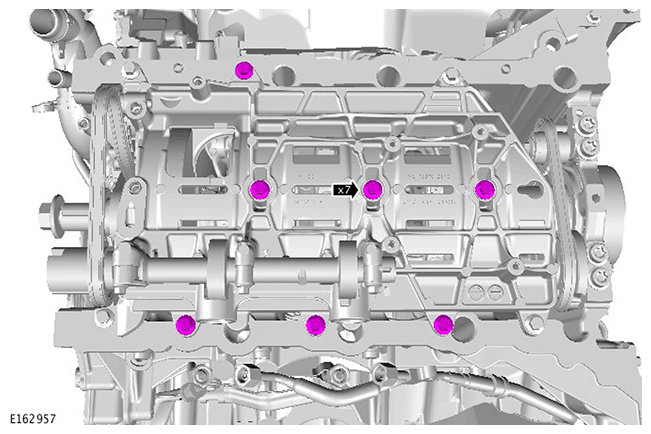

  6. G11416206

    Tighten remaining bolts.

    Torque Specification: 25 Nm

  7. Refer to: Electric Oil Pump  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
