Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Do not work on or under a vehicle supported only by a jack.
    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Engine Oil Draining and Filling  (Engine - V6 S/C 3.0L Petrol, General Procedures).
  4. Refer to: Crankshaft Pulley  (Removal and Installation).

  5. Refer to: Engine - RWD  (Engine - V6 S/C 3.0L Petrol, Removal).

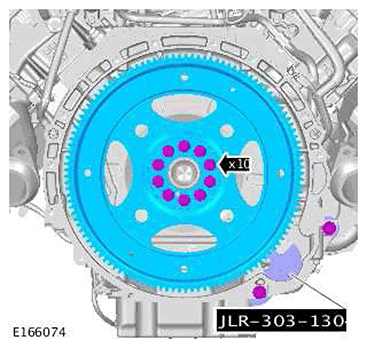

  6. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    G11415889

    Special Tool(s):  JLR-303-1304

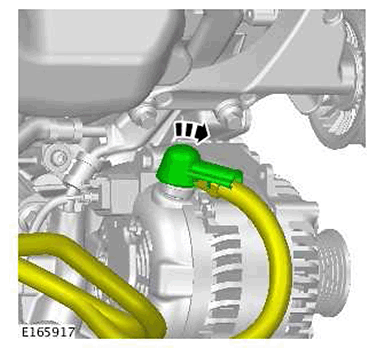

  7. G11415890

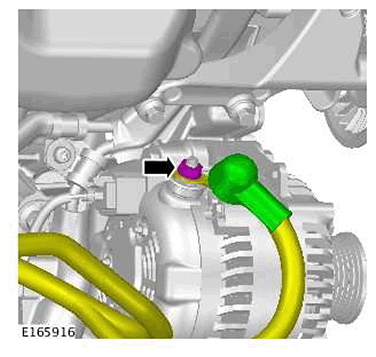

  8. G11415891

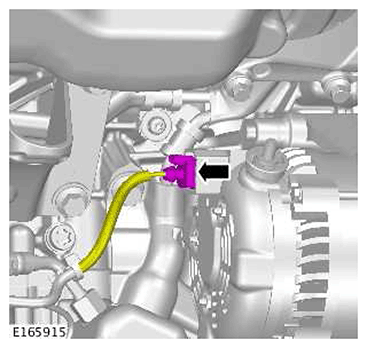

  9. G11415892

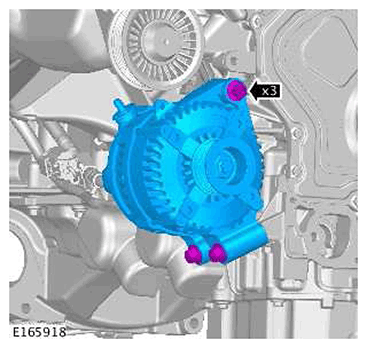

  10. G11415893
  11. G11415894

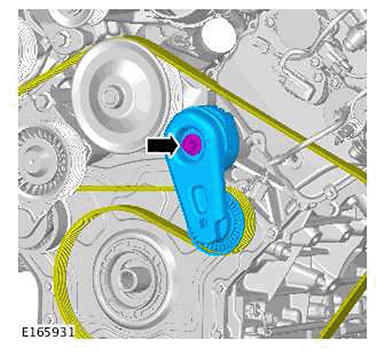

  12. G11415895

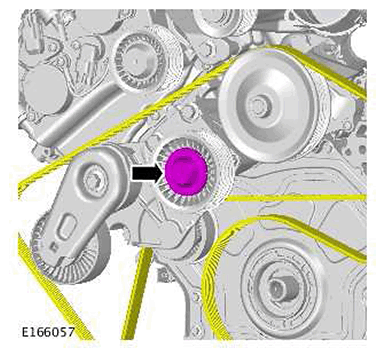

  13. G11415896

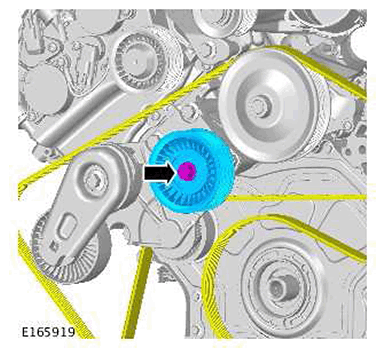

  14. G11415897

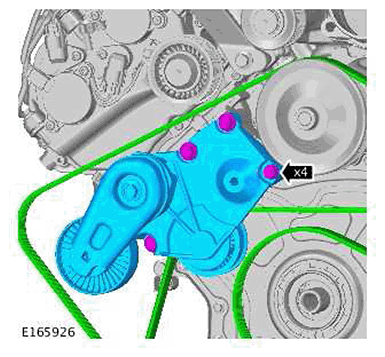

  15. G11415898

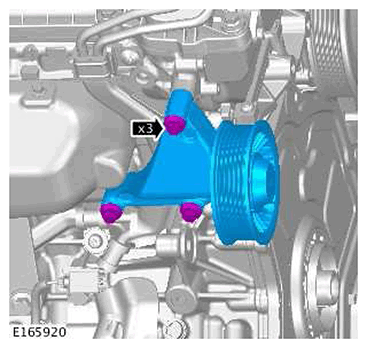

  16. G11415899

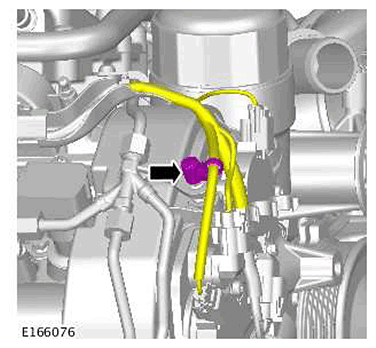

  17. G11415900

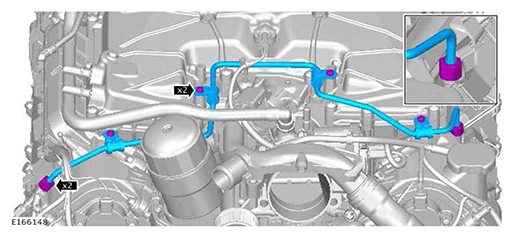

  18. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11415901
  19. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

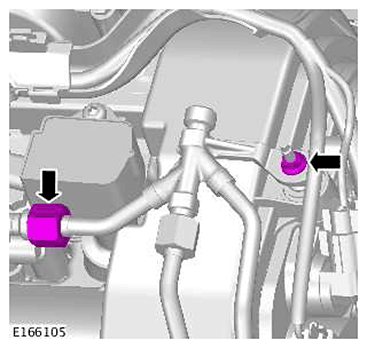

    G11415902

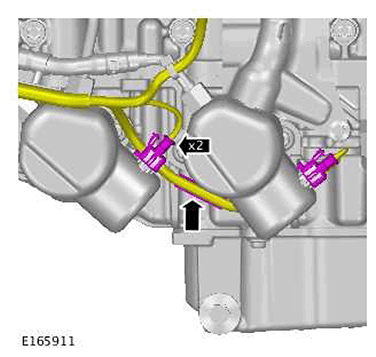

  20. G11415903

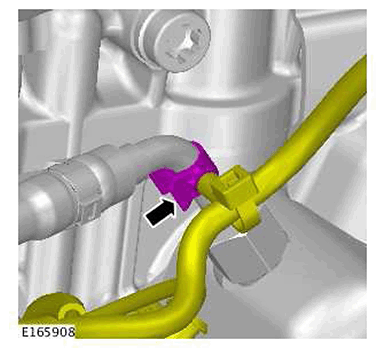

  21. G11415904

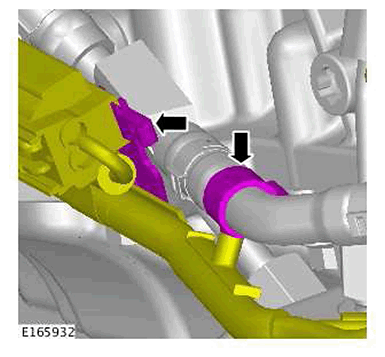

  22. G11415905

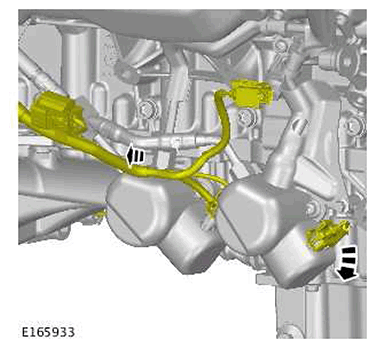

  23. G11415906

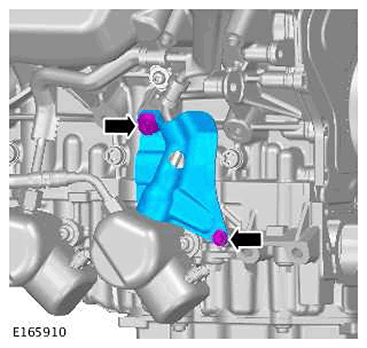

  24. G11415907

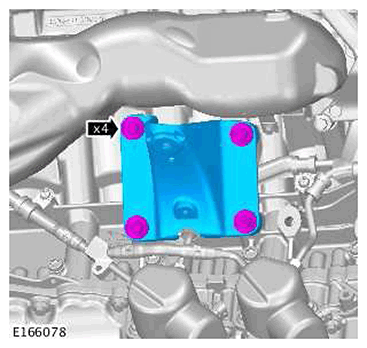

  25. G11415908

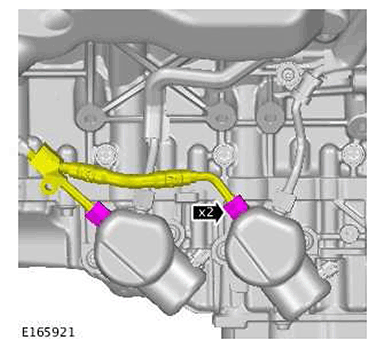

  26. G11415909

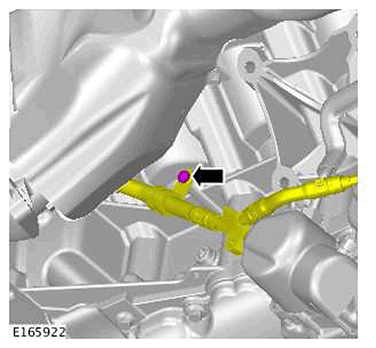

  27. G11415910

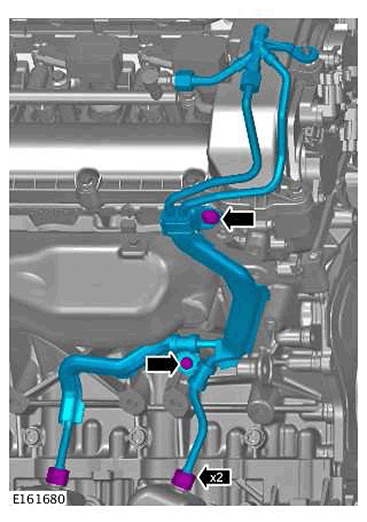

  28. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Discard the fuel pipes.
    G11415911

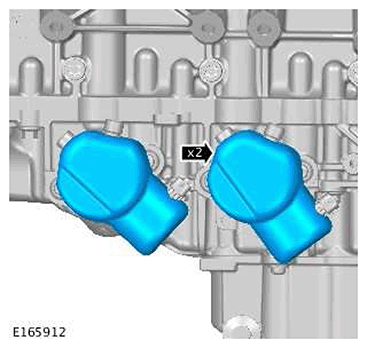

  29. G11415912
  30. CAUTION: Be prepared to collect escaping fluids.

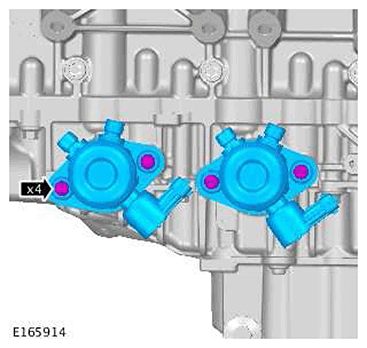

    G11415913
  31. CAUTION: Be prepared to collect escaping fluids.

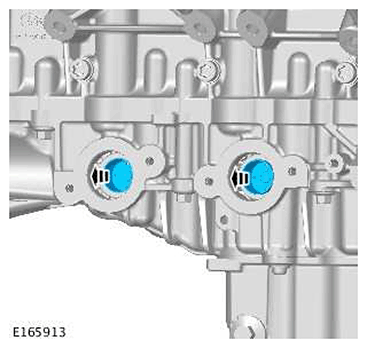

    G11415914

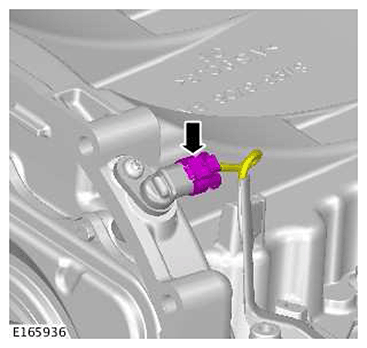

  32. G11415915

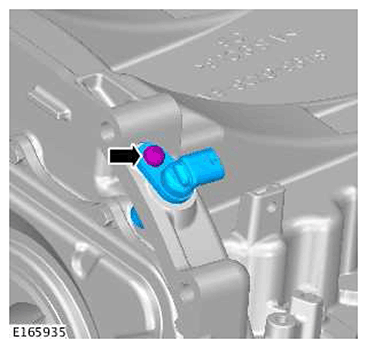

  33. G11415916

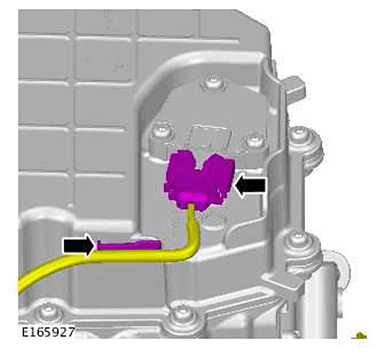

  34. G11415917

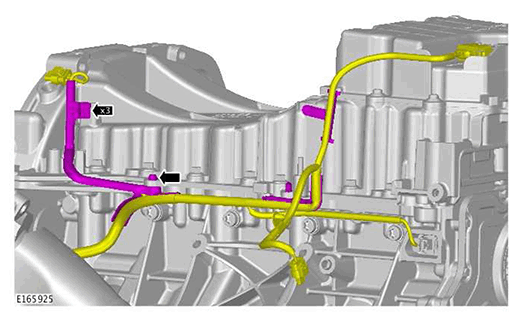

  35. G11415918
  36. CAUTION: Discard the component.

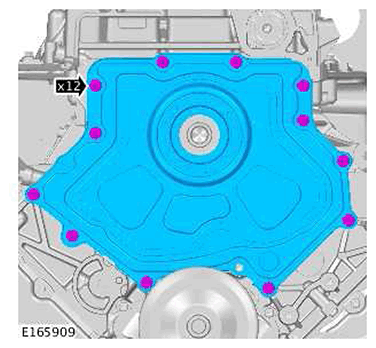

    G11415919

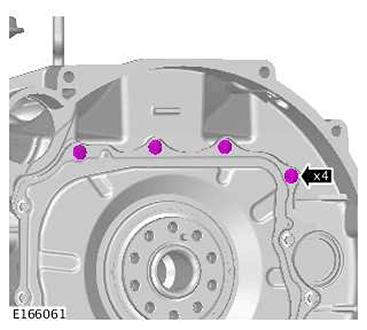

  37. G11415920

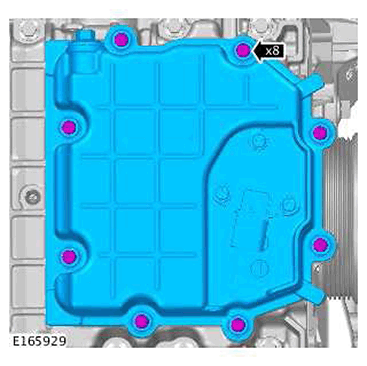

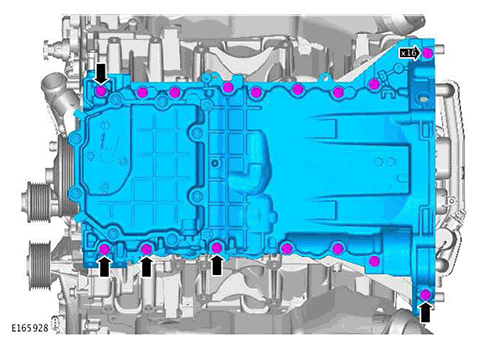

  38. G11415921
  39. G11415922

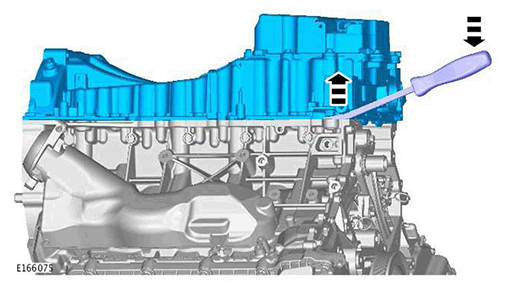

  40. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
    G11415923
  41. NOTE: Do not disassemble further if the component is removed for access only.

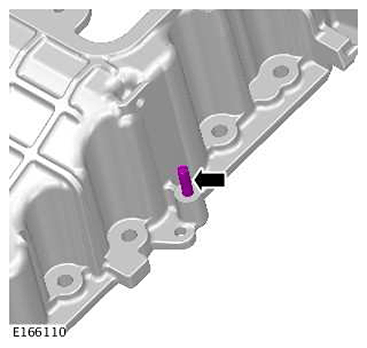

    G11415924
