Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

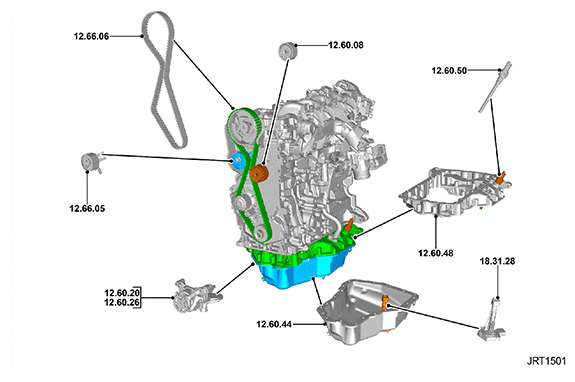

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 2200 CC, TD4 5.3
G11415883

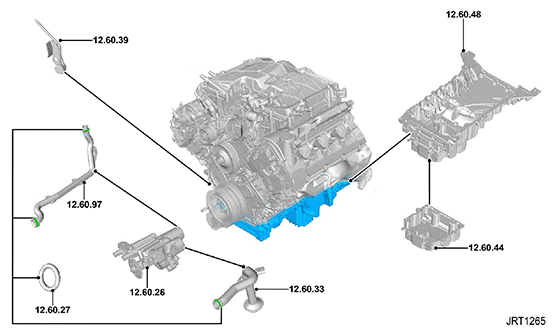

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 12.8
G11415884

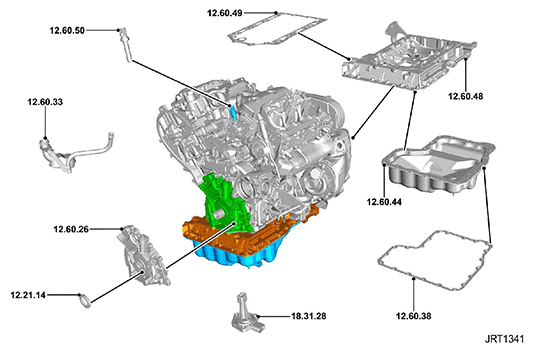

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 3000 CC, TDV6 8.3
G11415885

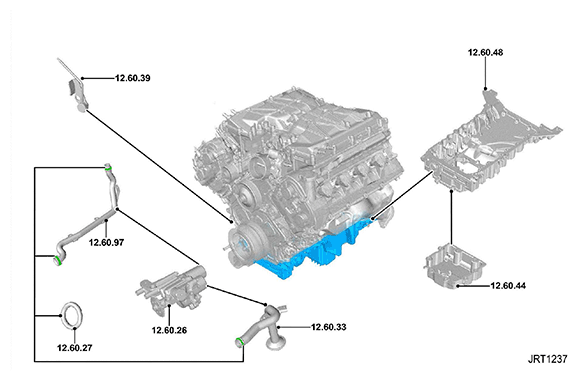

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 13.4
G11415886
