Oil Pan Extension - RWD (G1772405): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

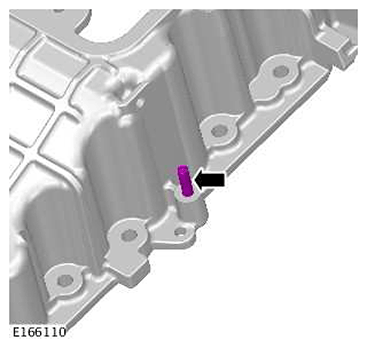

  1. G11415925

    Torque Specification: 8 Nm

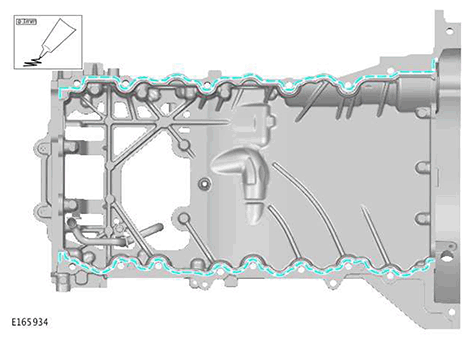

  2. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Use only a plastic scraper when removing the sealing material.
    G11415926
    • Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and tighten the bolts within 7 minutes.

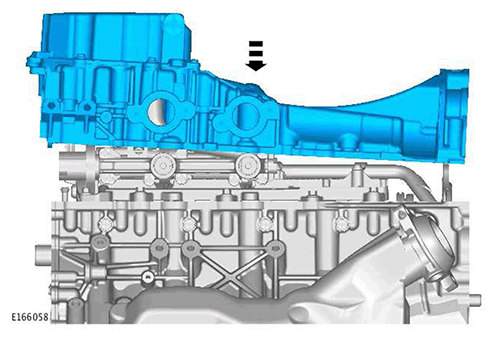

  3. G11415927

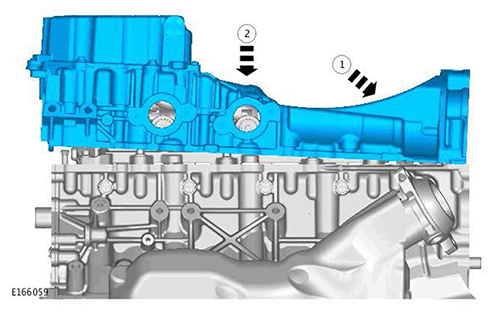

  4. CAUTION: Install the component in the sequence shown.
    G11415928

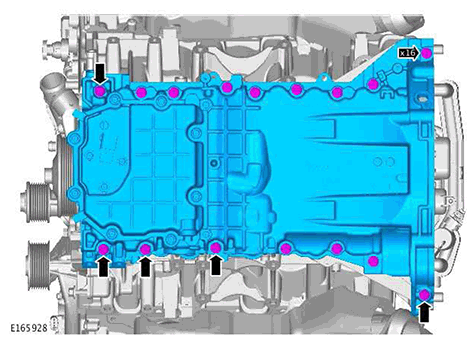

  5. CAUTION: Only tighten the bolts finger tight at this stage.
    G11415929
  6. NOTE: Tighten the bolts in the indicated sequence.

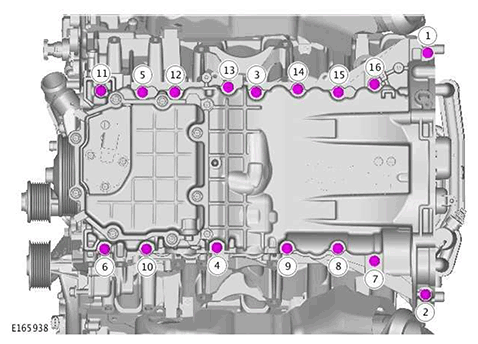

    G11415930

    Torque Specification: 25 Nm

  7. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Use only a plastic scraper when removing the sealing material.

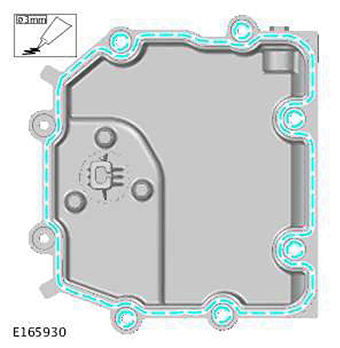

    G11415931
    • Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and tighten the bolts within 7 minutes.

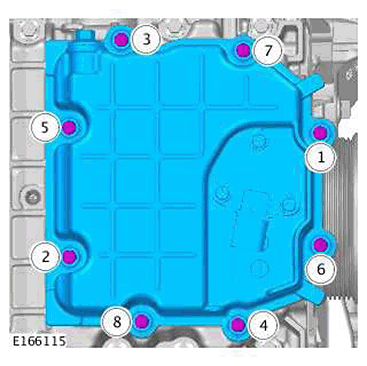

  8. NOTE: Tighten the bolts in the indicated sequence.
    G11415932

    Torque Specification: 12 Nm

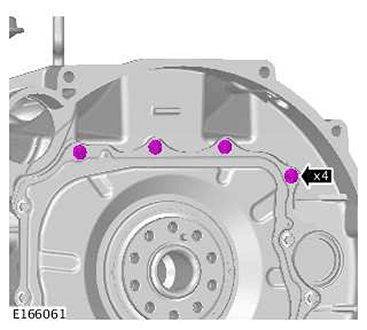

  9. G11415933

    Torque Specification: 12 Nm

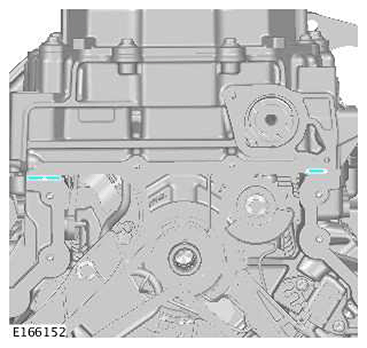

  10. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11415934
    • Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and tighten the bolts within 7 minutes.

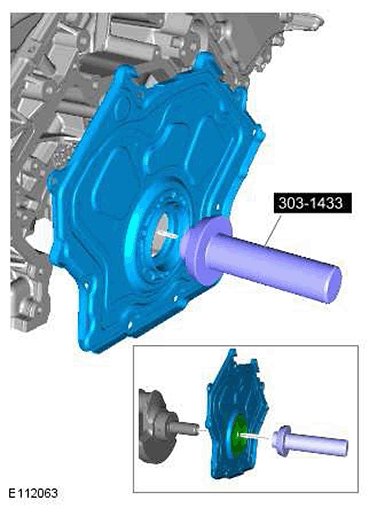

  11. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Install a new lower timing cover.
    G11415935

    Install the bolts, but do not tighten fully at this stage.

    Special Tool(s):  303-1433

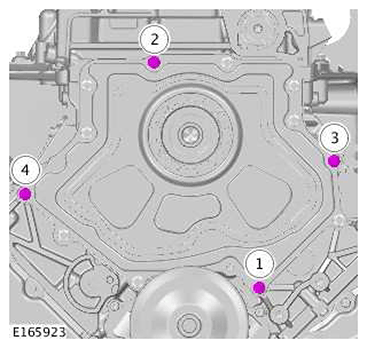

  12. NOTE:
    • Tighten the bolts in the indicated sequence.
    • Special tools shown removed for clarity.
    G11415936
    • Torque Specification: 12 Nm
  13. NOTE: Special tools shown removed for clarity.

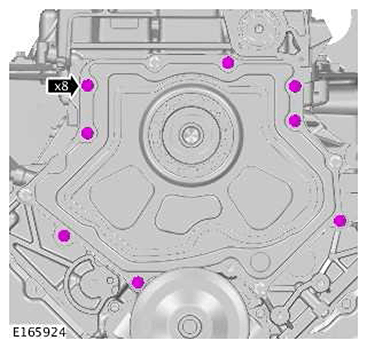

    G11415937

    Torque Specification: 12 Nm

  14. Remove the special tools.

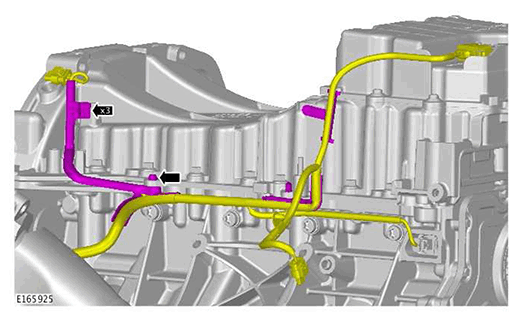

  15. G11415938

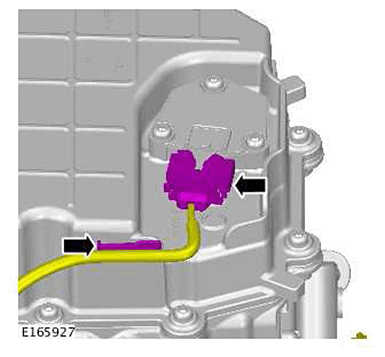

  16. G11415939

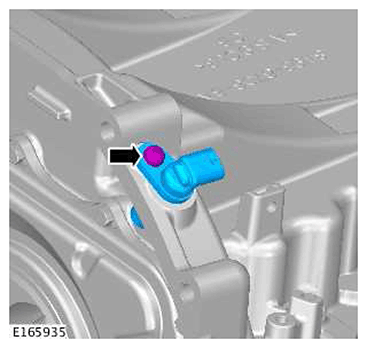

  17. G11415940

    Torque Specification: 10 Nm

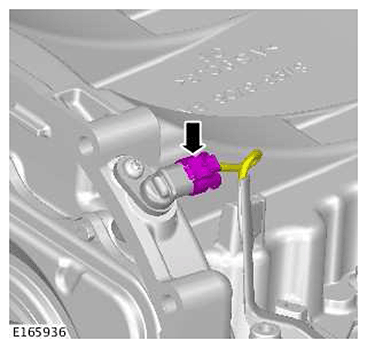

  18. G11415941

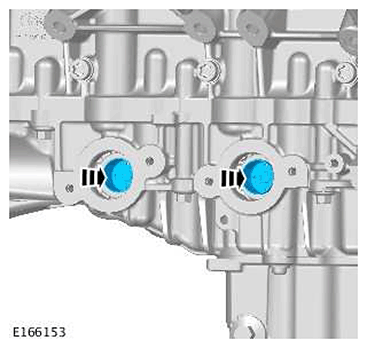

  19. NOTE: Lubricate the fuel rail high-pressure fuel pump buckets with clean engine oil.
    G11415942
  20. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

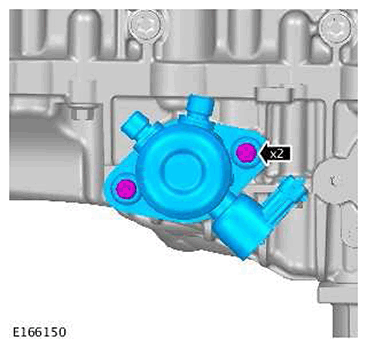

    G11415943
    • Torque Specification: 11 Nm

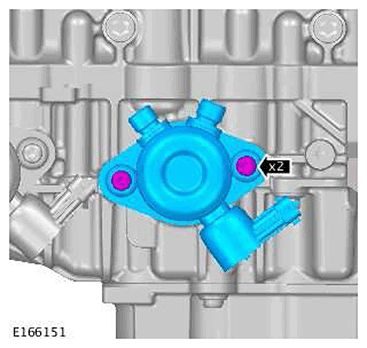

  21. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    G11415944
    • Torque Specification: 11 Nm

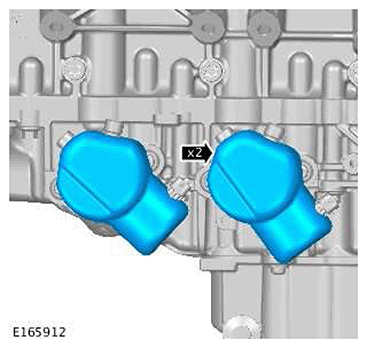

  22. G11415945
  23. CAUTION:
    • Install new high-pressure fuel supply lines.
    • Lubricate only the union threads with clean engine oil.
    NOTE:
    • Remove and discard the blanking caps.
    • Install the bolts and unions fully finger tight before final tightening.

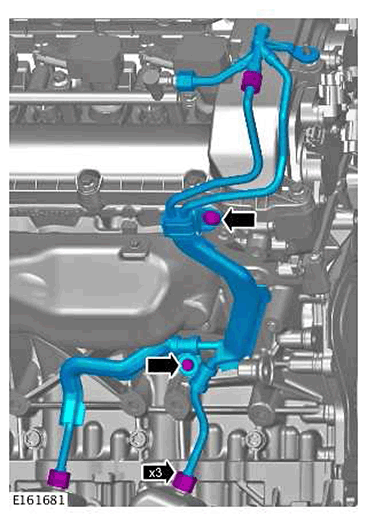

    G11415946

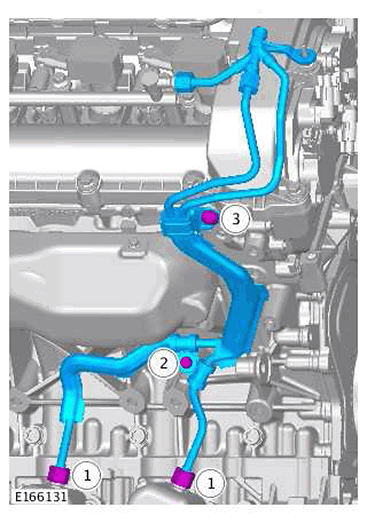

  24. G11415947
    • Torque Specification:

      Unions (1) 21 Nm

      M6 (2) 11 Nm

      M8 (3) 25 Nm

      M5 nut (4) 6 Nm

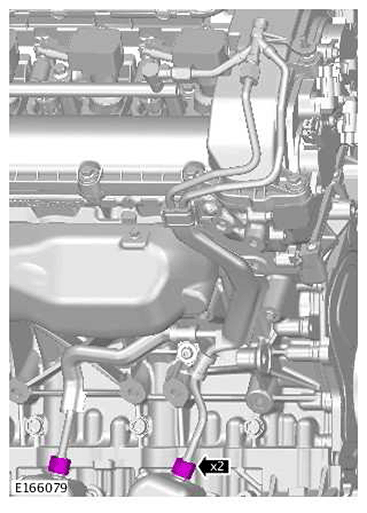

  25. G11415948
    • Torque Specification: 21 Nm

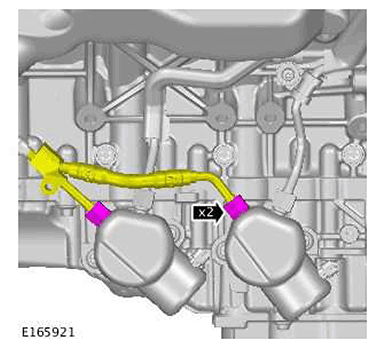

  26. NOTE:
    • Install the bolt and unions finger tight before final tightening.
    • Remove and discard the blanking caps.
    G11415949
    • Torque Specification:

      Unions 21 Nm

      M6 11 Nm

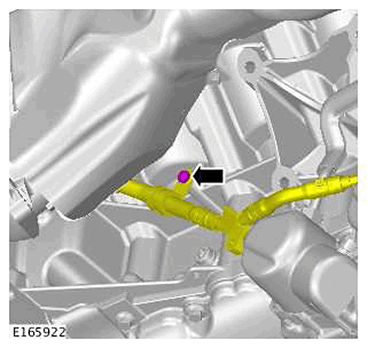

  27. G11415950

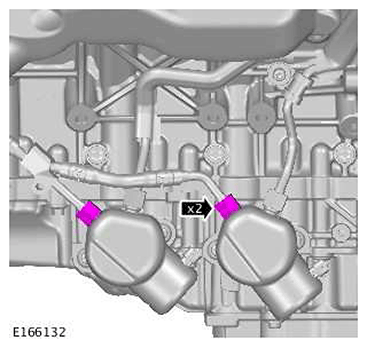

  28. G11415951

    Torque Specification: 21 Nm

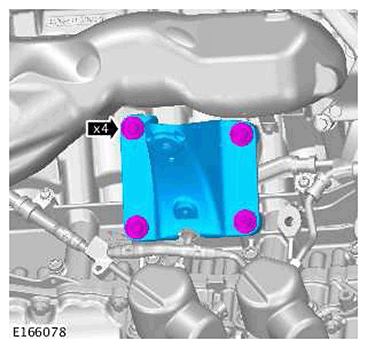

  29. G11415952

    Torque Specification: 48 Nm

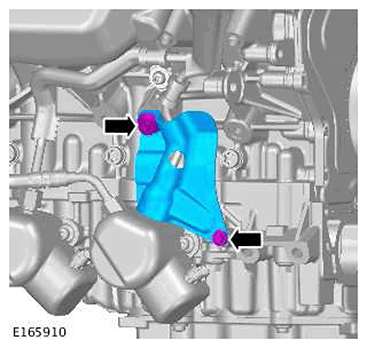

  30. G11415953

    Torque Specification:

    M10 29 Nm

    M6 11 Nm

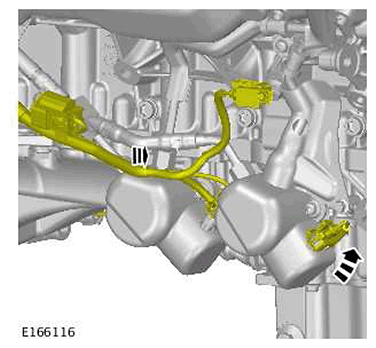

  31. G11415954

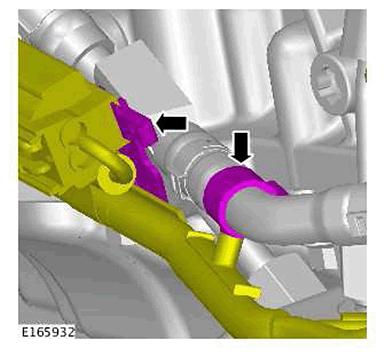

  32. G11415955

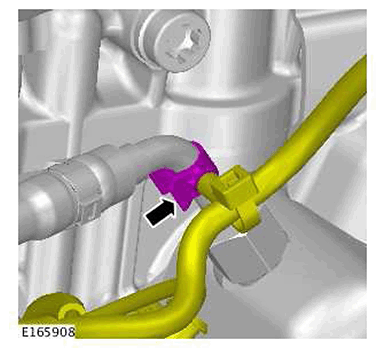

  33. G11415956

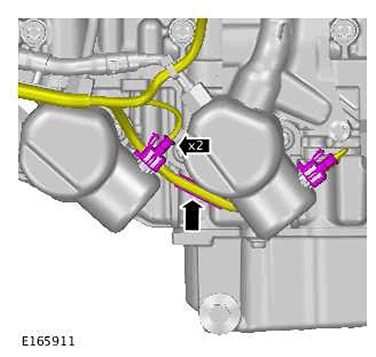

  34. G11415957

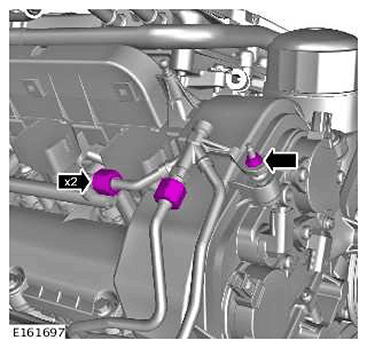

  35. NOTE:
    • Install the nut and unions finger tight before final tightening.
    • Remove and discard the blanking caps.
    G11415958

    Torque Specification:

    Unions 21 Nm

    M5 nut 6 Nm

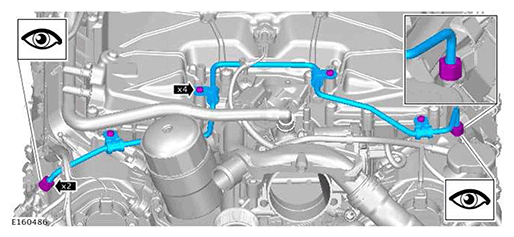

  36. CAUTION:
    • This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11415959

    Torque Specification:

    Unions 21 Nm

    M6 8 Nm

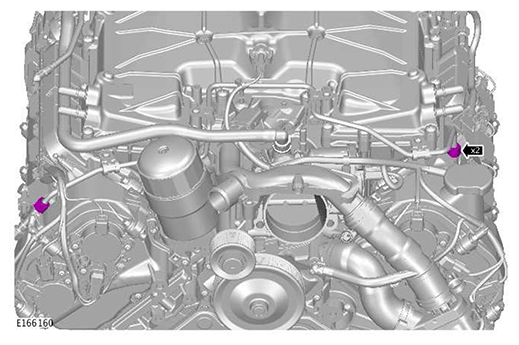

  37. G11415960

    Torque Specification: 21 Nm

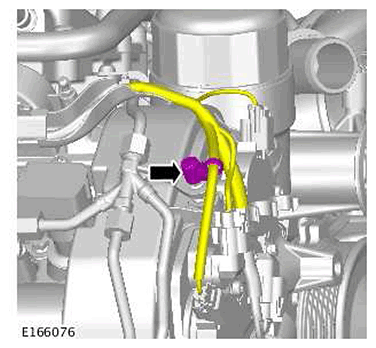

  38. G11415961

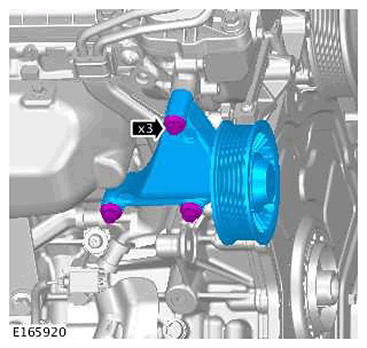

  39. G11415962

    Torque Specification: 25 Nm

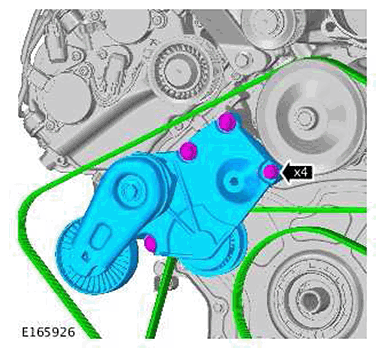

  40. G11415963

    Torque Specification: 25 Nm

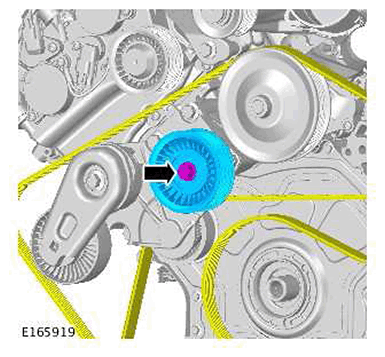

  41. G11415964

    Torque Specification: 25 Nm

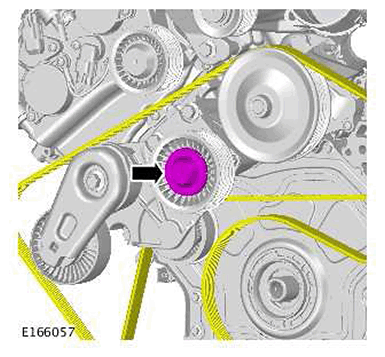

  42. G11415965

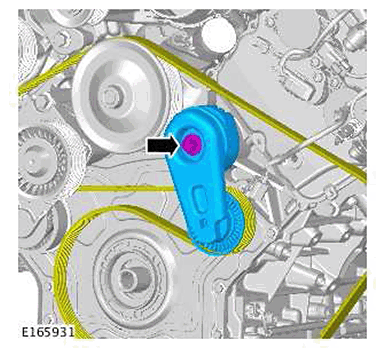

  43. G11415966

    Torque Specification: 40 Nm

  44. G11415967

    Torque Specification: 12 Nm

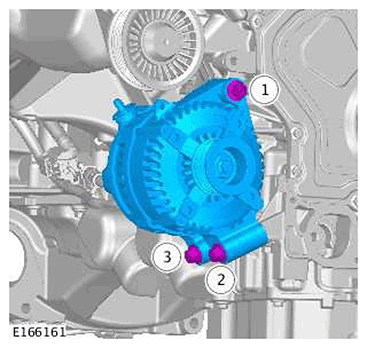

  45. CAUTION: Install all the bolts finger tight before final tightening.
    NOTE: Tighten the bolts in the indicated sequence.
    G11415968

    Torque Specification: 48 Nm

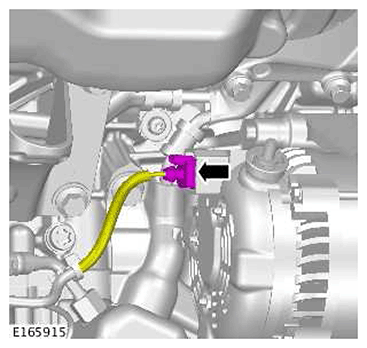

  46. G11415969

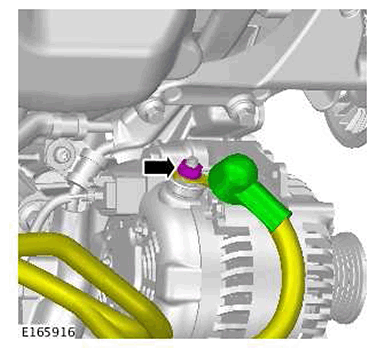

  47. G11415970

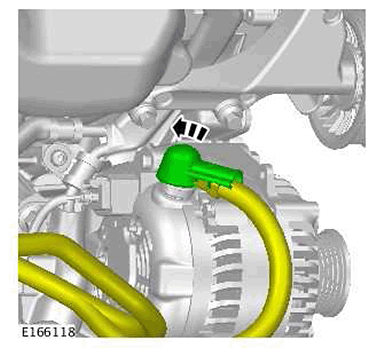

  48. G11415971
  49. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Install the bolts in the noted position.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    • Tighten the retaining bolts working diagonally.

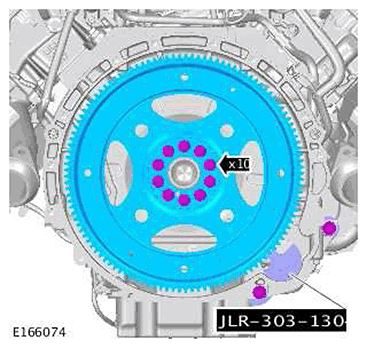

    G11415972

    Install the special tool.

    Special Tool(s):  JLR-303-1304

    Torque Specification:

    Stage 1: 45 Nm

    Stage 2: 90°

  50. Refer to: Engine - RWD  (Engine - V6 S/C 3.0L Petrol, Removal).
  51. Refer to: Crankshaft Pulley  (Removal and Installation).
  52. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  53. Refer to: Engine Oil Draining and Filling  (Engine - V6 S/C 3.0L Petrol, General Procedures).
