Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (V6 S/C 3.0L Petrol, General Procedures).
Refer to: Supercharger (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

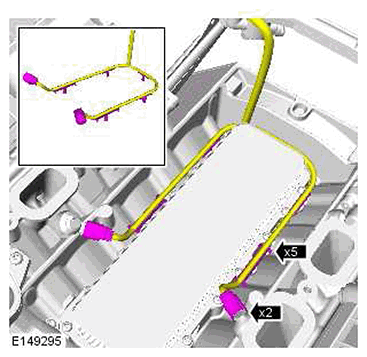

CAUTION:
- Be prepared to collect escaping oil.
- Be prepared to collect escaping coolant.

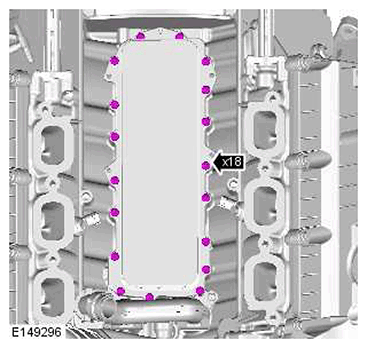

CAUTION:
- Make sure that these components are installed to the noted removal position.
- Be prepared to collect escaping coolant.
- Be prepared to collect escaping oil.

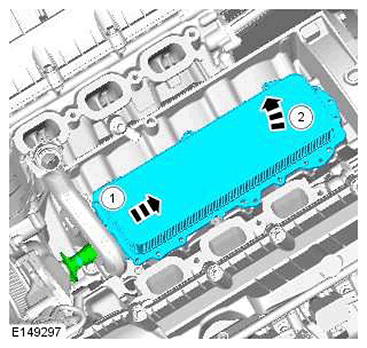

NOTE: Discard the gasket.

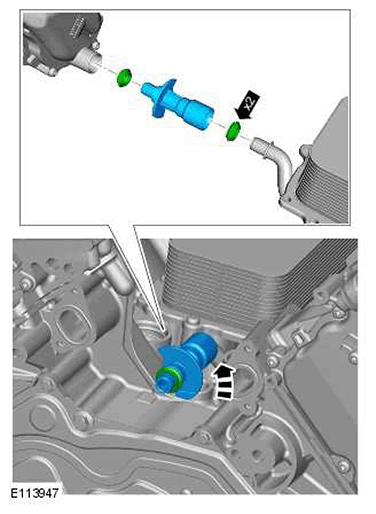

CAUTION:
- Make sure that these components are installed to the noted removal position.
- Install new o-ring seals
