Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

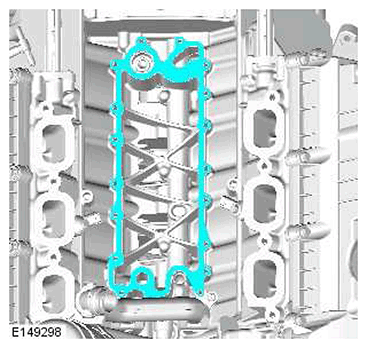

  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Install a new gasket.
    G11415763

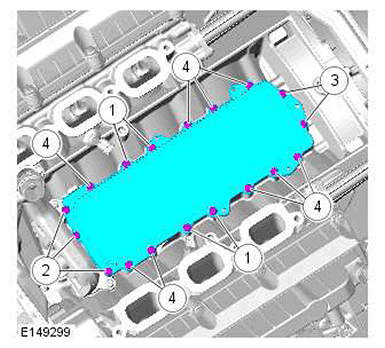

  2. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • Make sure that the area around the component is clean and free of foreign material.
    NOTE: Tighten the bolts in the indicated sequence.
    G11415764

    To install, reverse the removal procedure.

    Torque Specification: 13 Nm
