Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Crankshaft Pulley  (Removal and Installation).

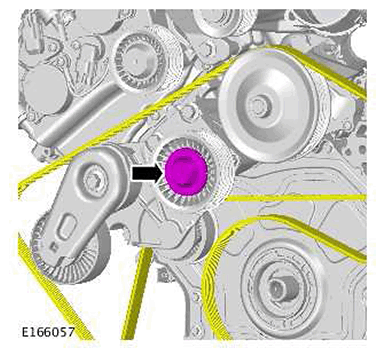

  4. G11416156

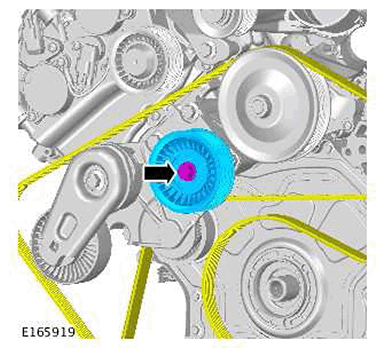

  5. G11416157

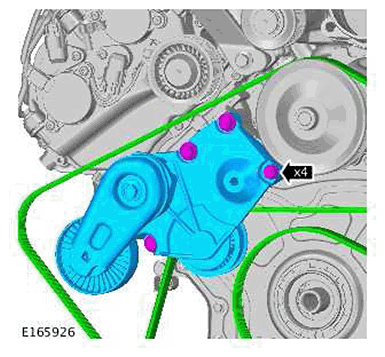

  6. G11416158

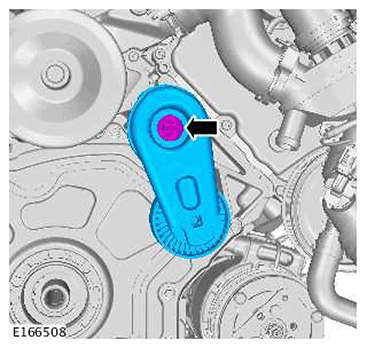

  7. G11416159
  8. Refer to: Brake Vacuum Pump - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Power Brake Actuation, Removal and Installation).

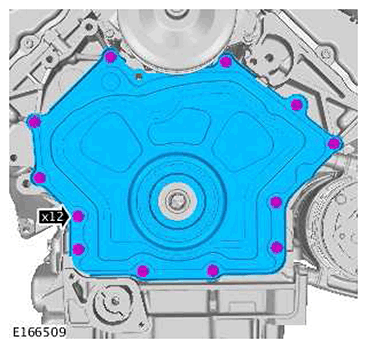

G11416160
