Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  4. Refer to: Air Conditioning System Recovery, Evacuation and Charging (Climate Control System - General Information, General Procedures).

    Left-hand drive vehicles

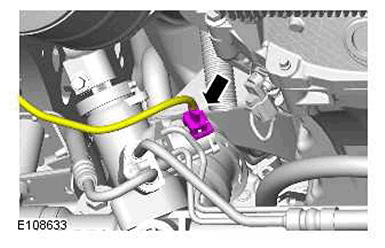

  5. G11415638
  6. NOTE: Note the fitted position.

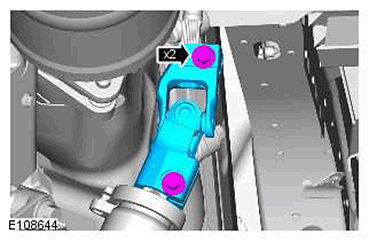

    G11415639
    • Right-hand side shown, left-hand side similar.

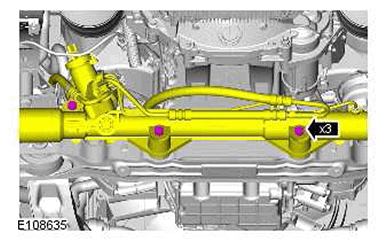

  7. G11415640
    • Support and release the power steering rack.

    All vehicles

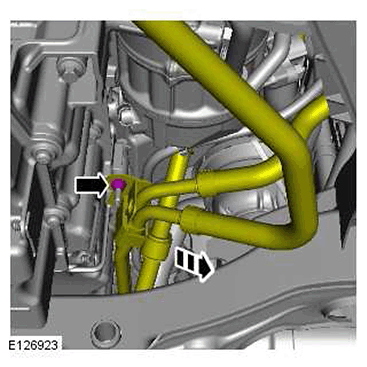

  8. G11415641
  9. NOTE: Remove and discard the O-ring seal.

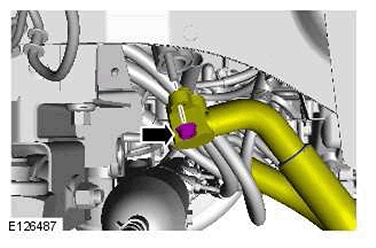

    G11415642

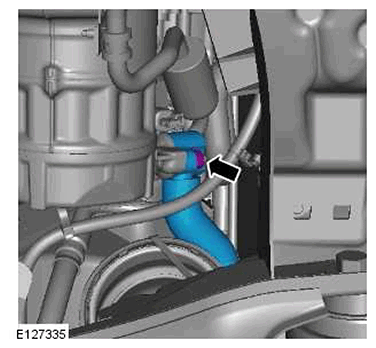

  10. G11415643
  11. CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

    Support the engine with the lifting equipment.

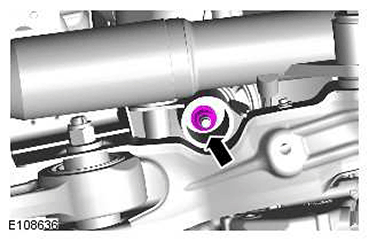

  12. G11415644
    • Remove and discard the nut.

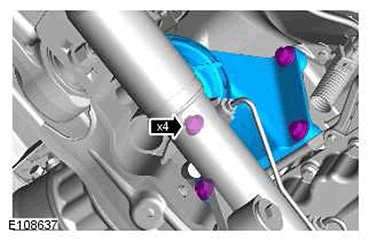

  13. G11415645
  14. NOTE: Do not disassemble further if the component is removed for access only.

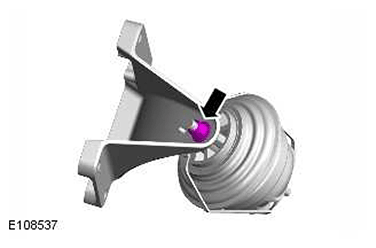

    G11415646
    • Remove and discard the nut.
