Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
Refer to: Left Exhaust Manifold (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Left Camshaft (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

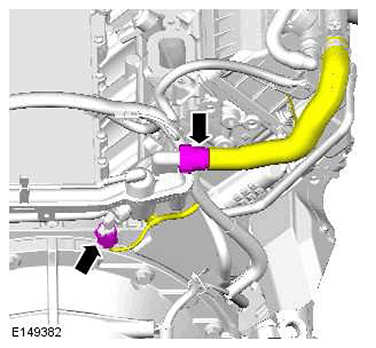

NOTE: Clamp the hose to minimize coolant loss.
CAUTION:
- Be prepared to collect escaping coolant.

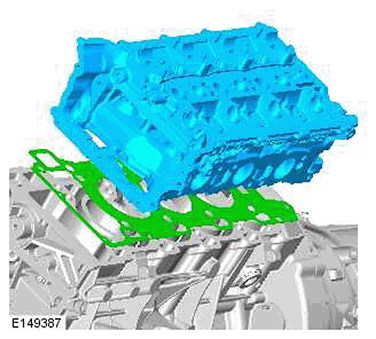

- Discard the seals.
CAUTION:

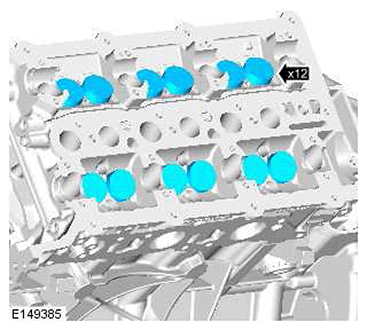

- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

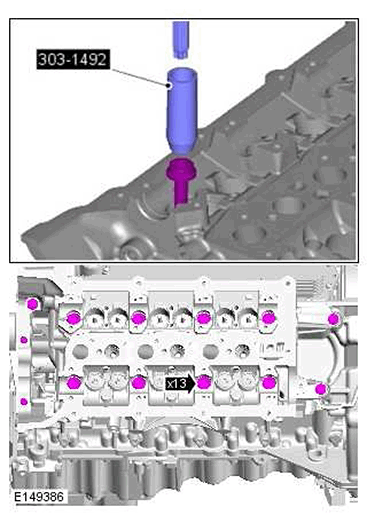

Special Tool(s): 303-1492
