Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Oil Pan Extension - RWD (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Oil Pan - AWD (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

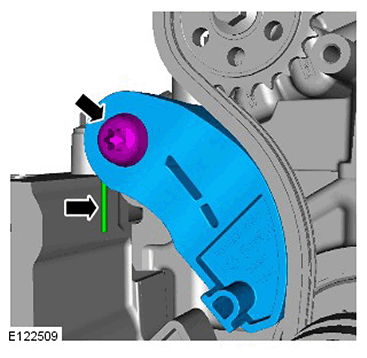

CAUTION: Using a suitable tool, lock the component.
