Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

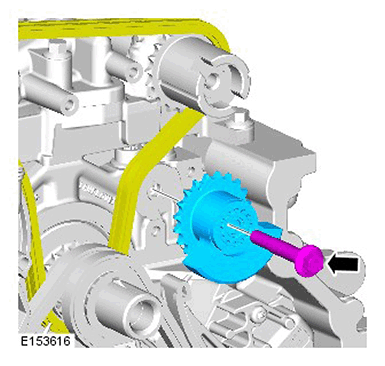

  1. G11416190

    Torque Specification:

    Stage 1 25 Nm

    Stage 2 30°

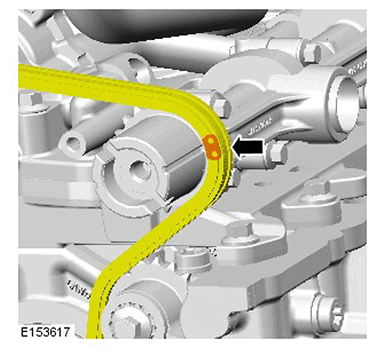

  2. G11416191

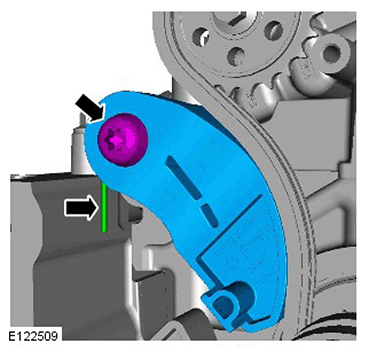

  3. G11416192

    Torque Specification: 21 Nm

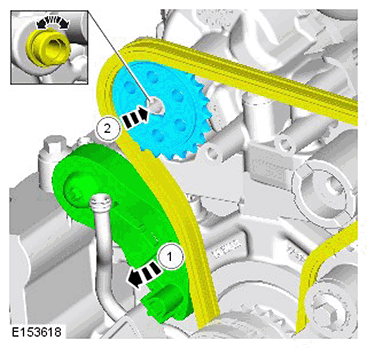

  4. G11416193

    Using a suitable tool, compress the timing chain tensioner.

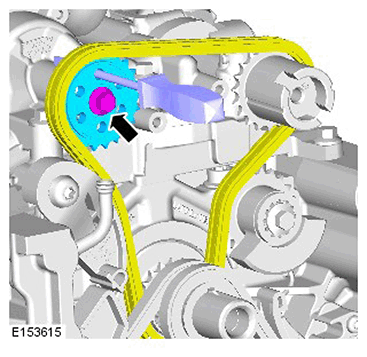

  5. CAUTION: Using a suitable tool, lock the component.
    G11416194

    Torque Specification: 21 Nm

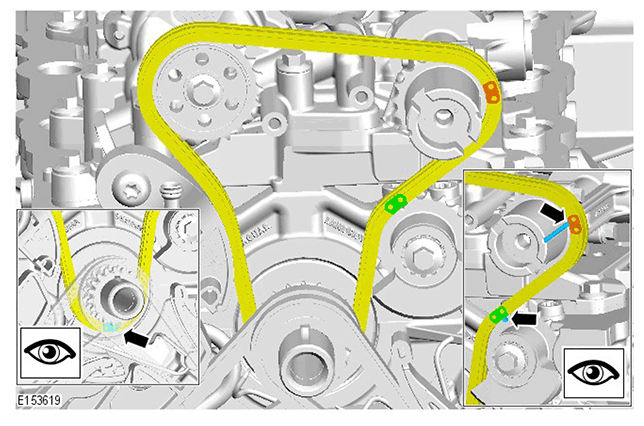

  6. G11416195

    Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

    Special Tool(s):  JLR-303-1621

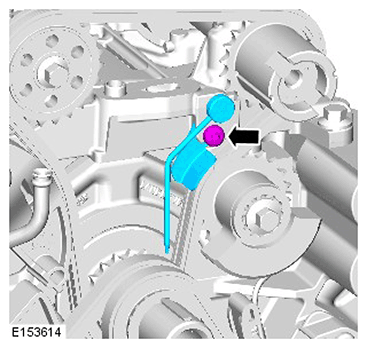

  7. G11416196

    Torque Specification: 11 Nm

  8. Refer to: Oil Pan - AWD  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

    Refer to: Oil Pan Extension - RWD  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
