Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, Removal).

    Refer to: Transmission (Automatic Transmission/Transaxle - V6 S/C 3.0L Petrol, AWD, Removal).

  2. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    • Note the position of the bolts, prior to removal.
    NOTE: Make sure that the crankshaft is not rotated.

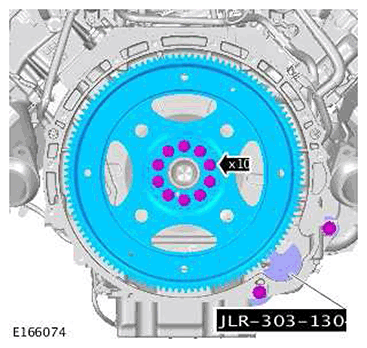

    G11415752

    Special Tool(s):  JLR-303-1304
