General Procedures: Filling

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

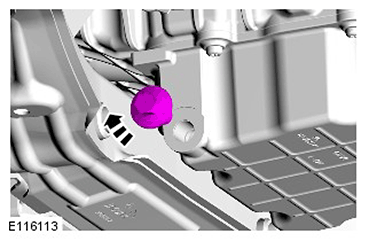

  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Install a new sealing washer.
    G11415397

    Torque Specification: 24 Nm

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

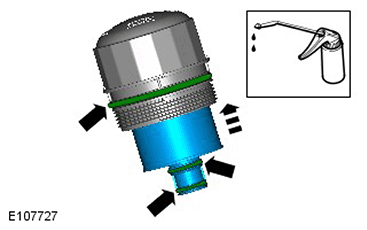

  3. NOTE: Install new O-ring seals.
    G11415398

    Lubricate the oil filter element O-ring seal with clean engine oil.

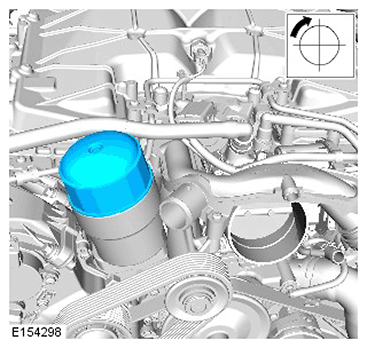

  4. CAUTION: Tighten the component finger tight first.
    G11415399
    • Torque Specification: 25 Nm
  5. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 15-19), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Specifications (Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Specifications).

    • Clean any residual engine oil from the oil filler cap area.

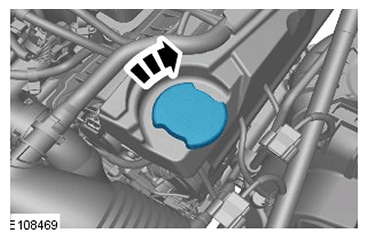

  6. G11415400
  7. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps 15-19 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  9. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.

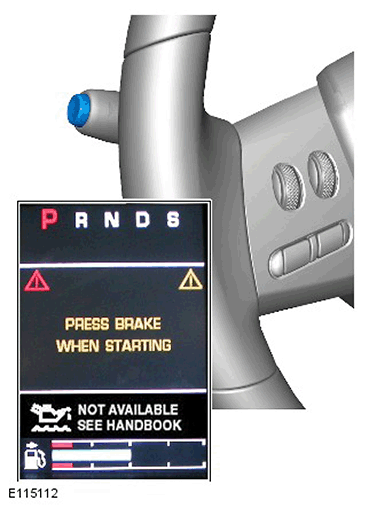

  10. G11415401
    • Scroll through the trip menu to access the engine oil level display.

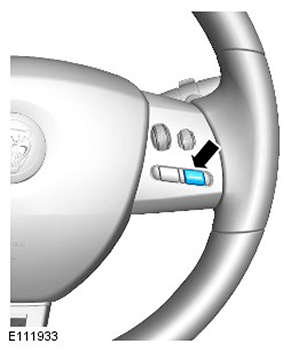

  11. G11415402
    • Press the cruise control cancel button twice within 2 seconds.

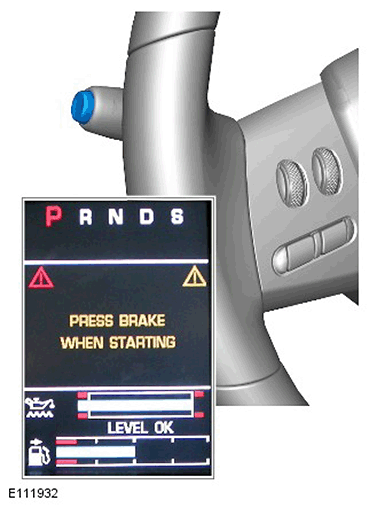

  12. G11415403
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  14), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  13. NOTE: If instructed to follow Steps 15-19 in a previous step, return to Step  14 and continue the procedure.

    Turn the ignition off.

  14. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  15. NOTE: The following steps are to update the average oil level value.
    G11415404
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  17. Turn the ignition off.
  18. Turn the ignition on.
  19. G11415405
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  20. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
