Oil Level and Temperature Sensor
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

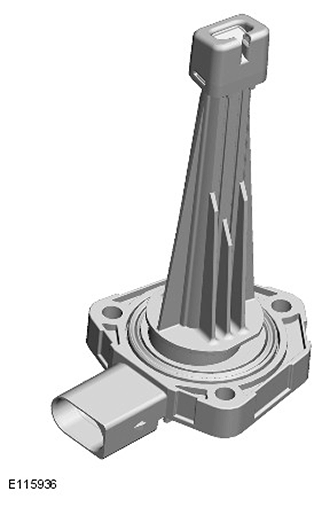

The oil level and temperature sensor supplies the ECM with a signal containing the level of the oil in the oil pan. The oil level and temperature sensor is secured to the bottom of the oil pan with three screws and sealed with a gasket.
NOTE:
The temperature function of the oil level and temperature sensor is not operational on the 3.0L V6 S/C engine.
The oil level and temperature sensor sends an ultrasonic pulse vertically upward and measures the time taken for the pulse to be reflected back from the top surface of the oil. This time is compared with the time taken for an ultrasonic pulse to travel a reference distance within the oil level and temperature sensor to determine the oil level. The oil level reading is transmitted in a PWM signal to the ECM.
Oil Level and Temperature Sensor Specifications
| FEATURE | DETAILS |
|---|---|
| Power source | Battery Voltage |
| Temperature Accuracy | ±2 °C (±3.6 °F) |
| Operating Level Range | 114 to 147 mm (4.57 to 5.79 in.) |
| Operating Temperature Range | -40 to 160 °C (-40 to 320 °F) |
