Exhaust Manifolds
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

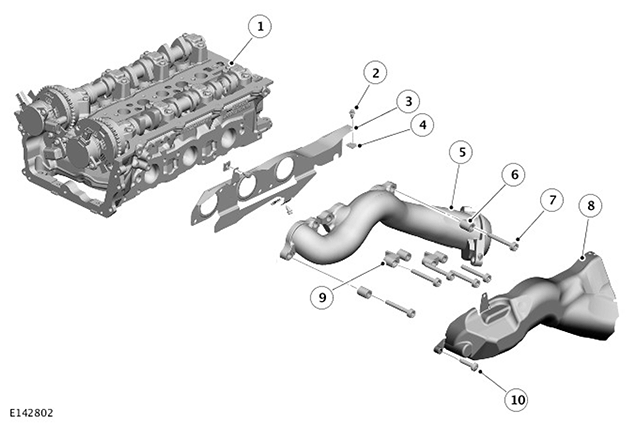

Left (Bank 2) installation shown, right (Bank 1) is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Bolt (3 of) |
| 3 | Layered gasket |
| 4 | Threaded insert (3 of) |
| 5 | Exhaust manifold |
| 6 | Spacer (4 of) |
| 7 | Bolt (6 of) |
| 8 | Heat shield |
| 9 | Machined spacer (2 of) |
| 10 | Bolt |
The high silicon molybdenum cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes a layered metal gasket and heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
