Cylinder Head Components: Notes
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Bank 2 cylinder head is shown, Bank 1 cylinder head is similar.

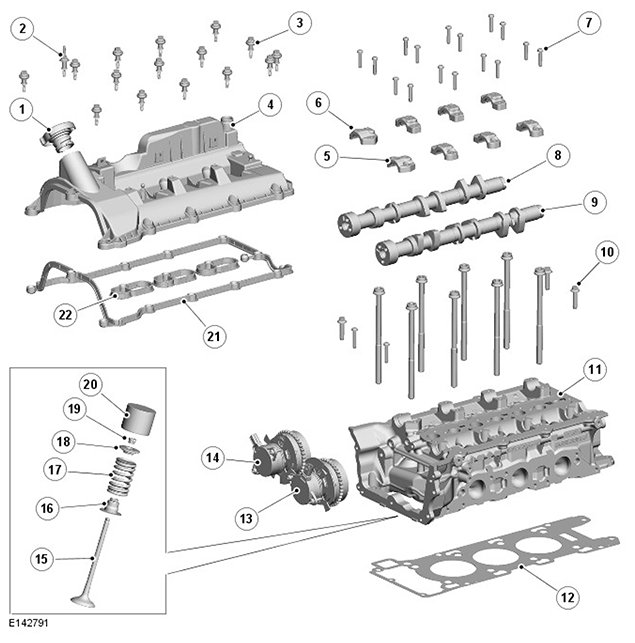

| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filler cap assembly |
| 2 | Stud, nut, grommet and sleeve (1 of Bank 2, 2 of Bank 1) |
| 3 | Bolt, grommet and sleeve (15 of) |
| 4 | Camshaft cover |
| 5 | Exhaust camshaft caps (4 of) |
| 6 | Inlet camshaft caps (4 of) |
| 7 | Camshaft cap bolts (16 of) |
| 8 | Inlet camshaft |
| 9 | Exhaust camshaft |
| 10 | Cylinder head bolts (13 of) |
| 11 | Cylinder head |
| 12 | Cylinder head gasket |
| 13 | Variable Camshaft Timing (VCT) actuator (exhaust) |
| 14 | Variable Camshaft Timing actuator assembly (inlet) |
| 15 | Valve (12 of (6 inlet, 6 outlet)) |
| 16 | Valve spring seat and stem seal (12 of) |
| 17 | Valve spring (12 of) |
| 18 | Valve spring retainer (12 of) |
| 19 | Valve spring collet (24 of) |
| 20 | Valve tappet (12 of) |
| 21 | Camshaft cover gasket |
