Oil Pan - RWD
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

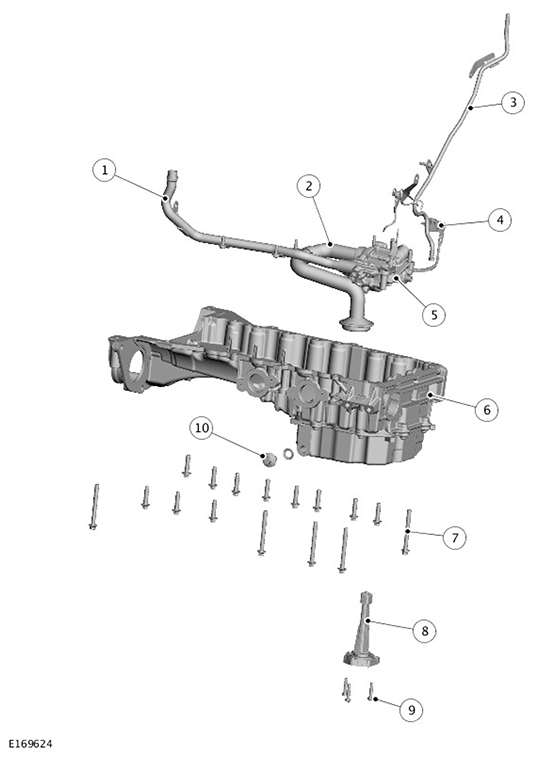

| ITEM |
DESCRIPTION |
| 1 |
Oil pump outlet pipe to cylinder block |
| 2 |
Oil pump pick-up pipe |
| 3 |
Oil evacuation tube |
| 4 |
Oil pump electric connector |
| 5 |
Electric oil pump |
| 6 |
Oil pan extension |
| 7 |
Oil pan body retaining bolts (16 of) |
| 8 |
Oil level and temperature sensor |
| 9 |
Bolt (3 of) |
| 10 |
Drain plug with washer |
