Cylinder Numbering

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

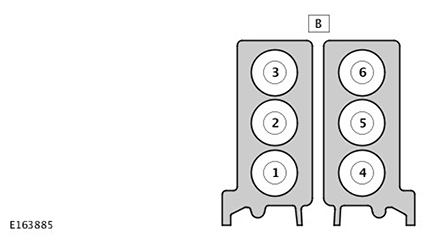

G11415359
ITEM DESCRIPTION
A DIN standard cylinder numbering

DIN cylinder firing order  1, 4, 2, 5, 3, 6
