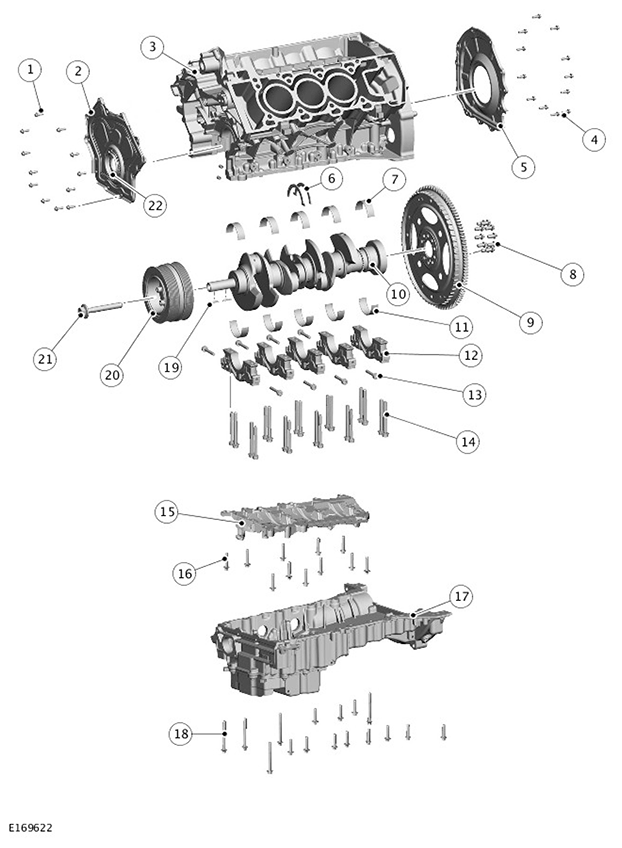

Cylinder Block Components
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | M6 bolt (12 of) |
| 2 | Cylinder block front cover |
| 3 | Cylinder block |
| 4 | M6 bolt (12 of) |
| 5 | Cylinder block rear cover and oil seal |
| 6 | Thrust washer (2 of) |
| 7 | Upper main bearing (5 of) |
| 8 | Bolt (10 of) |
| 9 | Drive plate |
| 10 | Crankshaft |
| 11 | Lower main bearing (5 of) |
| 12 | Crankshaft main bearing cap (5 of) |
| 13 | Cross bolt with sealing washers- crankshaft main bearing cap |
| 14 | Inner and outer bolts - crankshaft main bearing cap (20 of) |
| 15 | Windage tray |
| 16 | M8 bolt (11 of) |
| 17 | Oil pan |
| 18 | M8 bolt (16 of) |
| 19 | Woodruff key (2 of) |
| 20 | Crankshaft pulley/vibration damper assembly |
| 21 | Crankshaft damper bolt |
| 22 | Crankshaft front oil seal |
